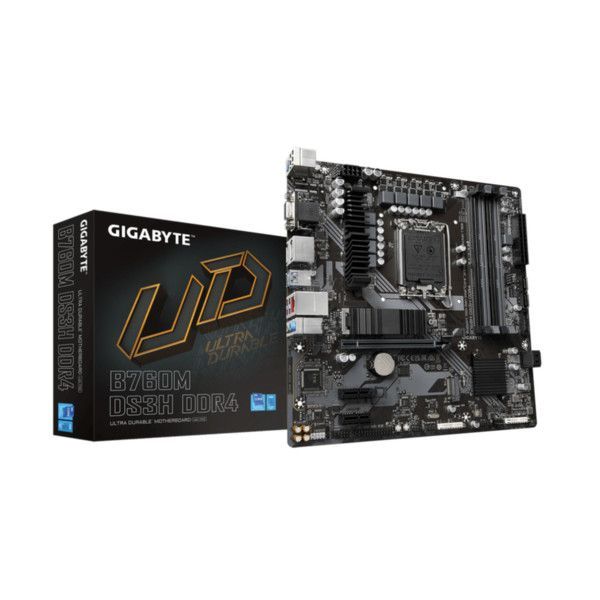

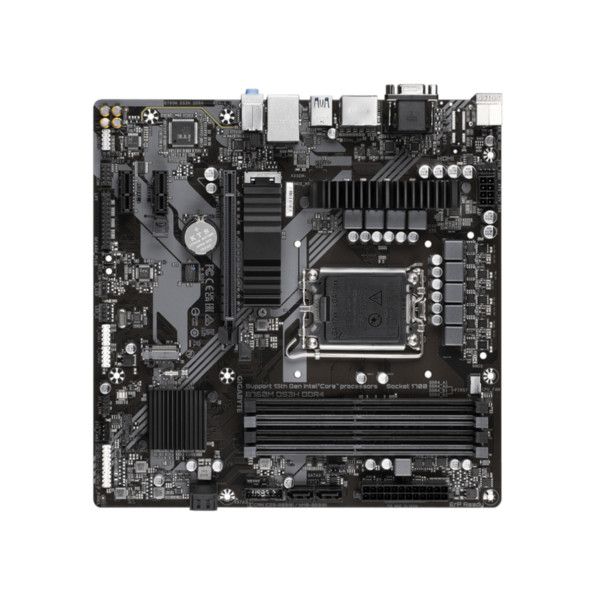

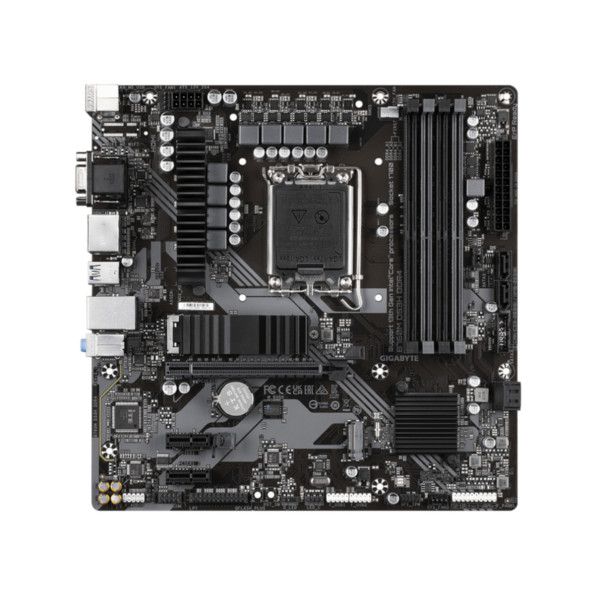

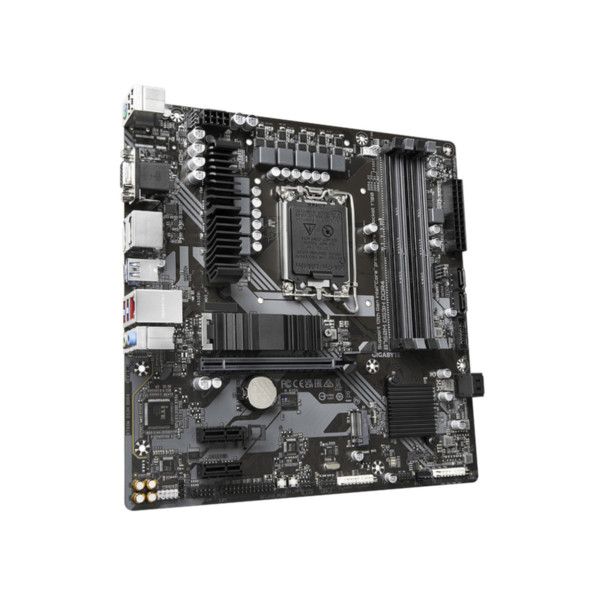

Gigabyte GA-B760M DS3H DDR4 (1700) (D)
- Artikel-Nr.: 71975
- Lagereingang: 19.01.2026
- Herstellernr.: B760M DS3H DDR4
- EAN: 4719331850876
- Sockel: LGA 1700
- RAM-Speicher max.: 128 GB
- Chipsatz: Intel B760 Express
- Formfaktor: micro ATX
| Eigenschaften | |
| unterstützte Prozessormodelle | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| Sockel | LGA 1700 |
| Chipsatz | Intel B760 Express |
| BIOS | UEFI AMI |
| Formfaktor | micro ATX |
| geeignet für freien Multiplikator | nein |
| RAM | |
| Speicher max. | 128 GB |
| Speicherplätze | 4 |
| Speicher je Speicherplatz | 32GB |
| Speicher Art | DDR4-SDRAM |
| RAM Takt | 2133,2400,2666,2933,3000,3200,3300,3333,3400,3466,3600,3666,3733,3800,3866,4000,4133,4266,4300,4400,4500,4600,4700,4800,4933,5000,5133,5333 MHz |
| Speicher Kanäle | Zweikanalig |
| Speichertyp | non-ECC |
| Controller in CPU | ja |

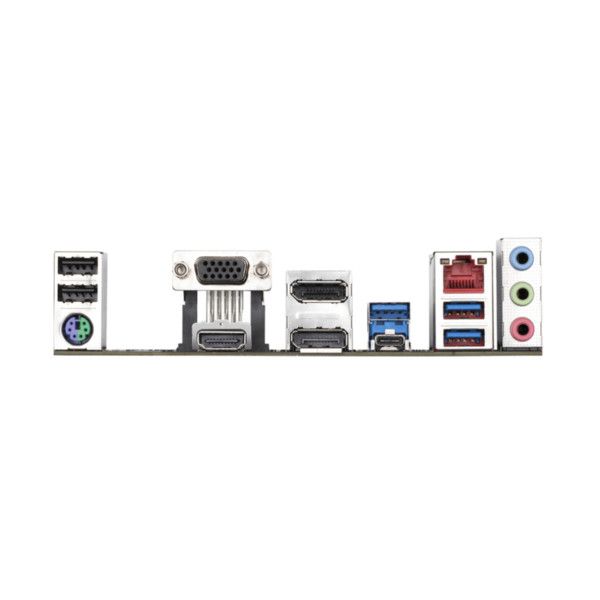

| Anschlüsse extern | |
| LAN (RJ45) | 2.5 Gigabit Ethernet |
| PS/2 (Tastatur/Maus) | 1 |
| USB 3.1 | 0 |
| USB 3.0 | 3 |
| USB 2.0 | 2 |
| USB C | 1 |
| VGA | 1 |
| HDMI | 1 |
| DisplayPort | 2 |
| Mikrofon | 1 |
| Line-Out 3,5 mm Klinke | 4 |
| S/PDIF-Out (optisch) | 1 |
| Anschlüsse intern | |
| PCIe 4.0 | 1 |
| PCIe 3.0 | 2xPCIe x16 |
| Mainbord Strom | 24pin |
| CPU Strom | 8+4pin |
| SATA 3 | 4 |
| M.2 | 2 |
| M.2 Länge max. | 110mm |
| M.2 Konnektor | M |
| USB-Header USB 2.0 | 2 |
| USB-Header USB 3.0 | 1 |
| USB-Header USB C | 0 |
| Lüfter 4-polig PWM | 3 |
| Sound | |
| Sound-Chip | 7.1 Kanäle |
| Sonstiges | |
| LAN | Intel 2.5GbE LAN Chip |
| Multi-GPU | ja |
| Multi-GPU Modus | Nicht unterstützt |
| RAID SATA | 0, 1, 5, 10 |
| Beleuchtungsfarbe | RGB |
| Farbe | schwarz |
| Gewicht (g) | 1 kg |
| interne Grafik | ja |
| verfügbare Slots | 3 |
