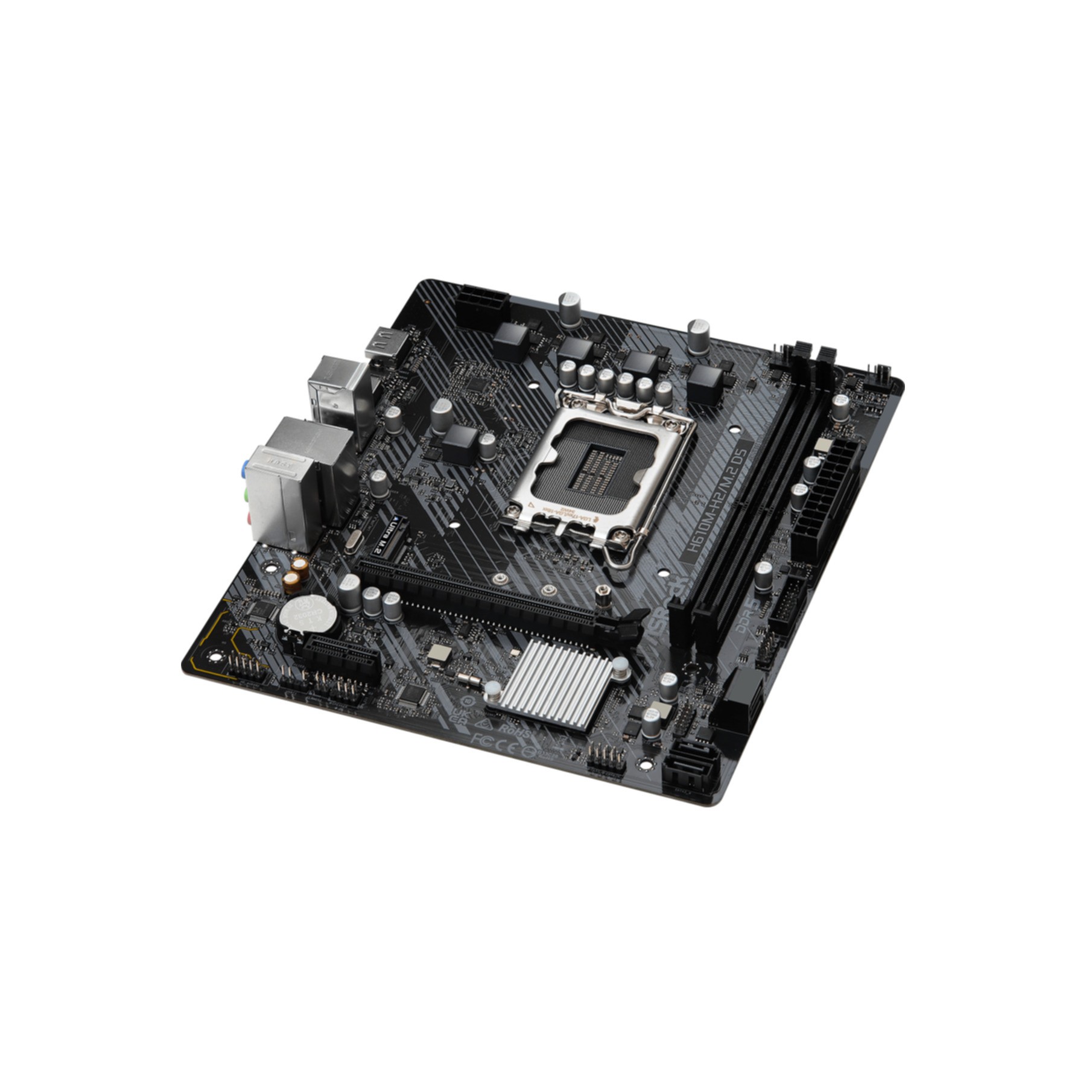

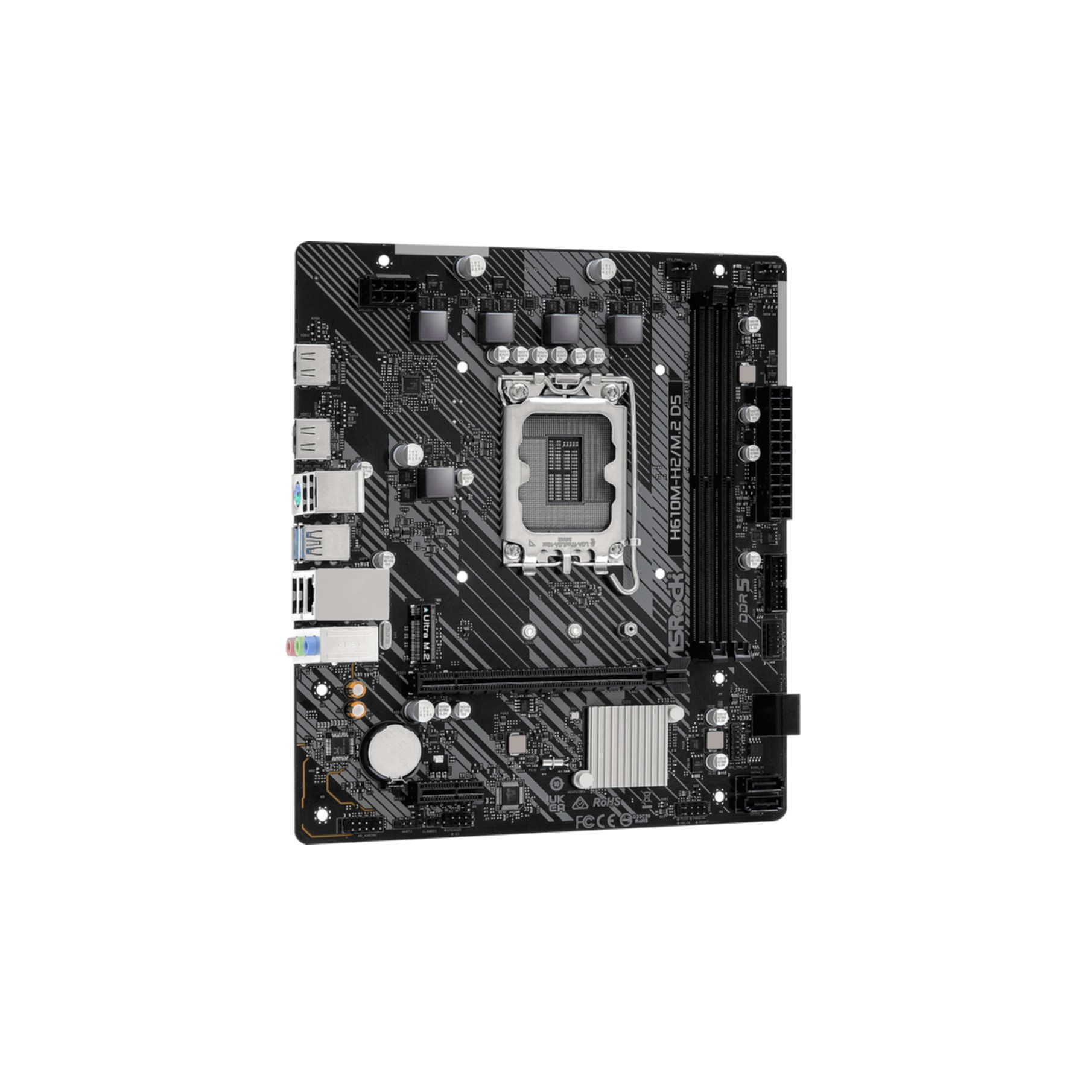

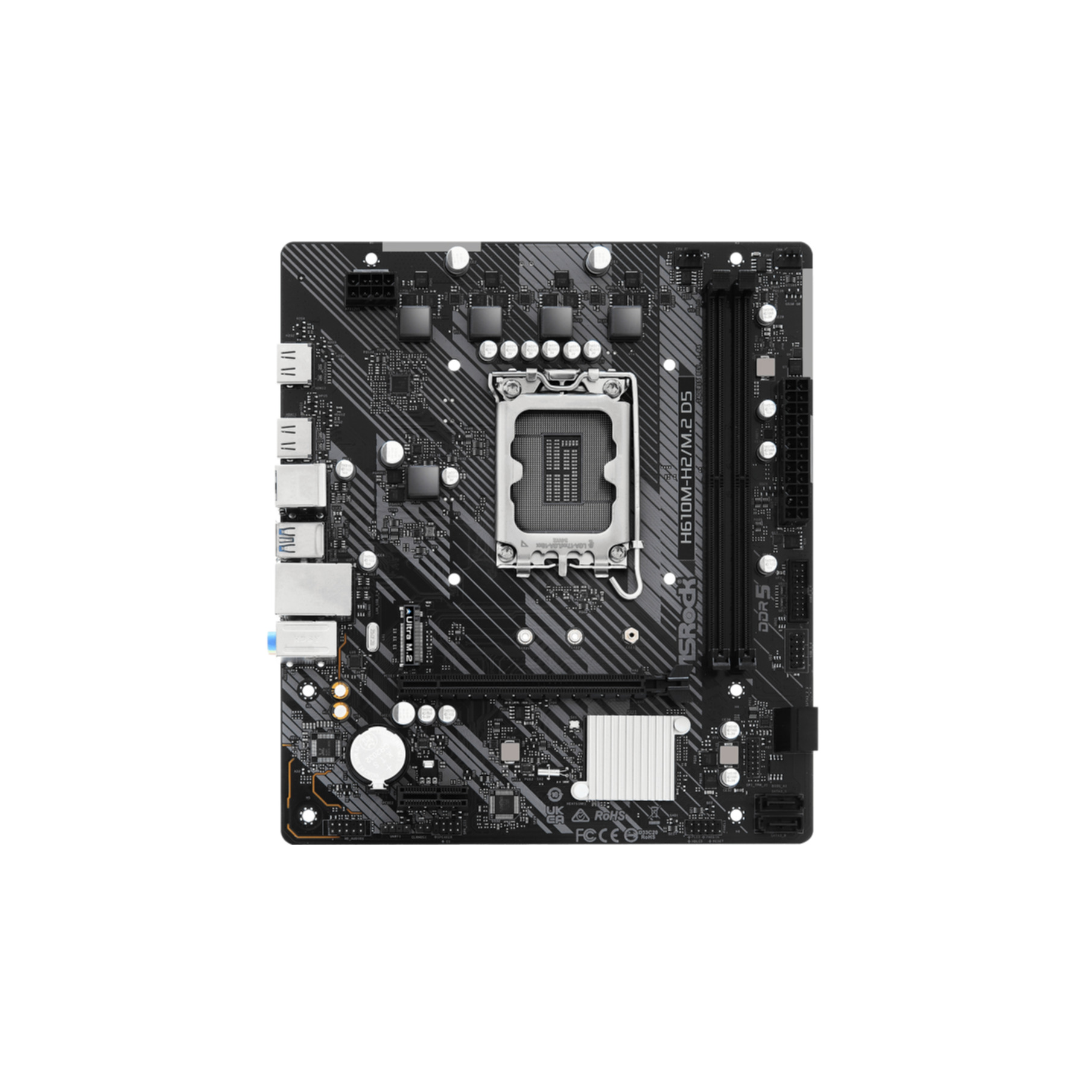

ASROCK H610M-H2/M.2 D5 (1700) (D)
- Order number: 86265
- Supplier number: 90-MXBML0-A0UAYZ
- EAN: 4710483943775
- Socket: LGA 1700
- Internal memory max.: 96 GB
- Chipset: Intel H610
- Form factor: micro ATX
| Eigenschaften | |
| unterstützte Prozessormodelle | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® |
| Socket | LGA 1700 |
| Chipset | Intel H610 |
| BIOS | UEFI AMI |
| Form Factor | micro ATX |
| geeignet für freien Multiplikator | ja |
| RAM | |
| Speicher max. | 96 GB |
| Memory Spaces | 2 |
| Speicher je Speicherplatz | 32GB |
| Memory Type | DDR5-SDRAM |
| RAM Takt | 4800 MHz |
| Speicher Kanäle | Zweikanalig |
| Speichertyp | ECC;Non-ECC;Un-buffered |
| Controller in CPU | ja |
| Anschlüsse extern | |
| LAN (RJ45) | Gigabit Ethernet |
| PS/2 (Tastatur/Maus) | 1 |
| USB 3.1 | 0 |
| USB 3.0 | 2 |
| USB 2.0 | 4 |
| VGA | 0 |
| HDMI | 2 |
| DisplayPort | 1 |
| Mikrofon | 1 |
| Line-Out 3,5 mm Klinke | 2 |
| S/PDIF-Out (optisch) | 1 |
| Anschlüsse intern | |
| PCIe 4.0 | 1x PCIe x16 |
| PCIe 3.0 | 1 |
| Mainbord Strom | 24pin |
| CPU Strom | 8pin |
| SATA 3 | 4 |
| M.2 | 2 |
| M.2 Länge max. | 110mm |
| M.2 Konnektor | M |
| USB-Header USB 2.0 | 1 |
| USB-Header USB 3.0 | 1 |
| USB-Header USB C | 0 |
| Lüfter 4-polig PWM | 3 |
| Sound | |
| Sound-Chip | 7.1 Kanäle |
| Sonstiges | |
| LAN | Realtek 8111H |
| Multi-GPU Modus | CrossFire |
| RAID SATA | 0, 1, 5, 10 |
| Beleuchtungsfarbe | RGB |
| Farbe | schwarz;silber |
| Gewicht (g) | 830 |
| Breite (cm) | 24.40 |
| Tiefe (cm) | 24.40 |
| internal graphics | Yes |
| verfügbare Slots | 6 |
