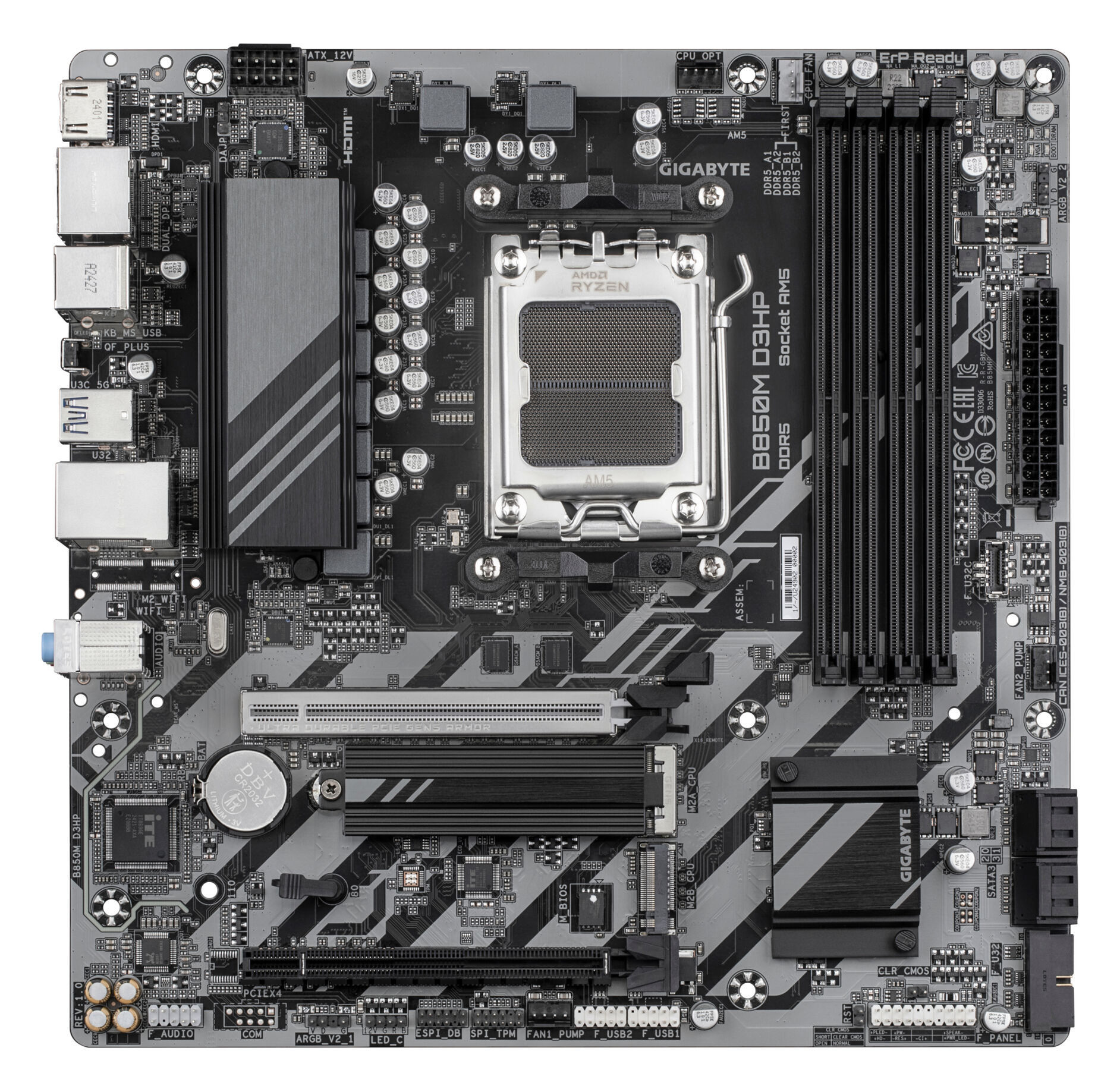

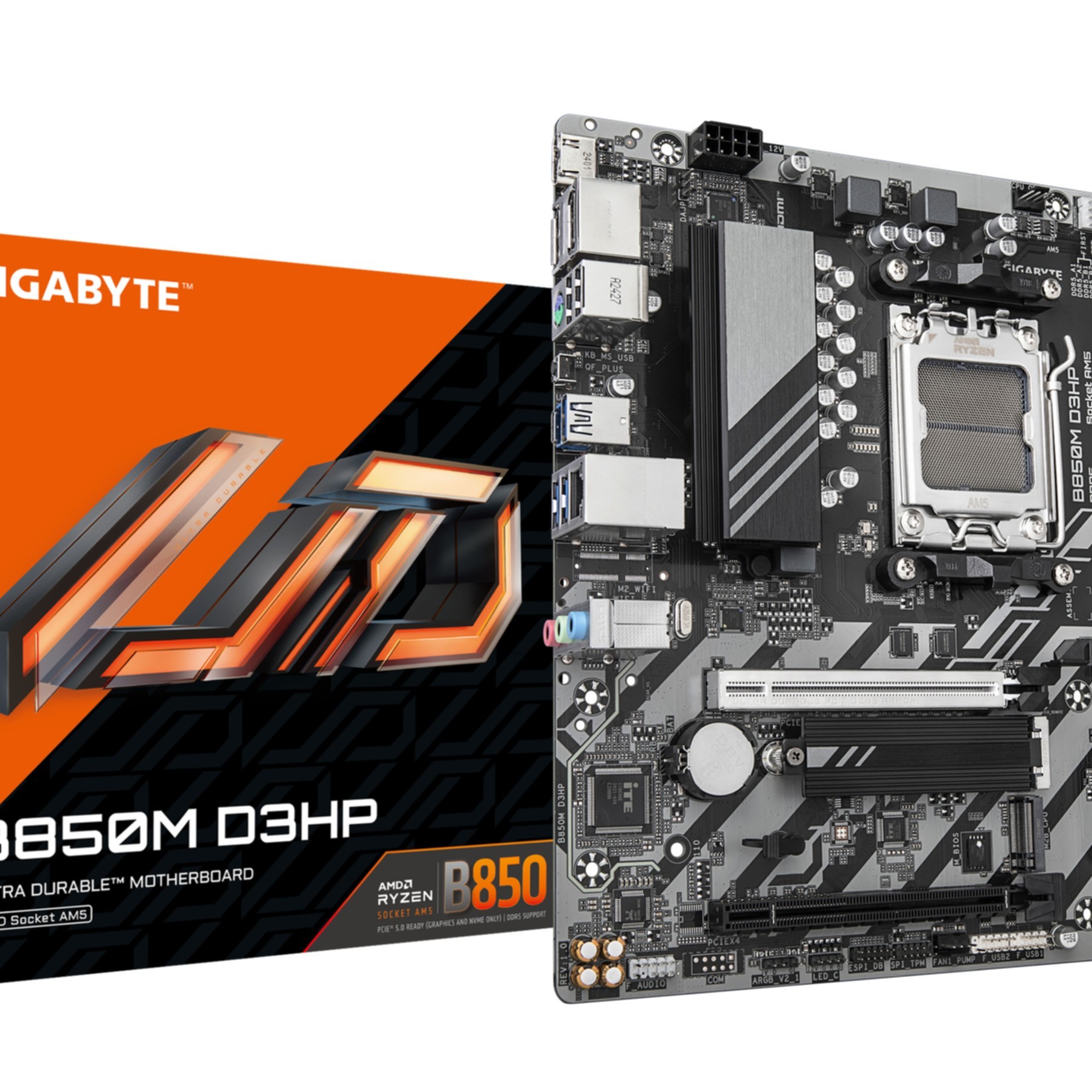

Gigabyte GA-B850M D3HP (AM5) (D)
- Order number: 87128
- Supplier number: B850M D3HP
- EAN: 4719331867058
- Socket: Socket AM5
- Internal memory max.: 256 GB
- Chipset: AMD B850
- Form factor: micro ATX
| Eigenschaften | |
| unterstützte Prozessormodelle | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Socket | Socket AM5 |
| Chipset | AMD B850 |
| BIOS | UEFI AMI |
| Form Factor | micro ATX |
| geeignet für freien Multiplikator | ja |
| RAM | |
| Speicher max. | 256 GB |
| Memory Spaces | 4 |
| Speicher je Speicherplatz | 64 GB |
| Memory Type | DDR5-SDRAM |
| RAM Takt | 4400,4800,5200,5600,6000,6200,6400,6600,6666,6800,7000,7200,7600,7800,8000,8200 MHz |
| Speicher Kanäle | Zweikanalig |
| Speichertyp | ECC unbuffered;non-ECC unbuffered |
| Controller in CPU | ja |
| Anschlüsse extern | |
| LAN (RJ45) | Gigabit Ethernet |
| USB 3.1 | 0 |
| USB 3.0 | 3 |
| USB 2.0 | 2 |
| VGA | 0 |
| HDMI | 1 |
| DisplayPort | 1 |
| Mikrofon | 1 |
| Line-Out 3,5 mm Klinke | 4 |
| S/PDIF-Out (optisch) | 1 |
| Anschlüsse intern | |
| PCIe 4.0 | 1 |
| PCIe 3.0 | 2x PCIe x16;1x PCIe x1 |
| Mainbord Strom | 24pin |
| CPU Strom | 8pin |
| SATA 3 | 4 |
| M.2 | 2 |
| M.2 Länge max. | 110mm |
| M.2 Konnektor | M |
| USB-Header USB 2.0 | 2 |
| USB-Header USB 3.0 | 2 |
| USB-Header USB C | 0 |
| Lüfter 4-polig PWM | 3 |
| Sound | |
| Sound-Chip | Realtek ALC897 |
| Sonstiges | |
| LAN | 1x Realtek® 2.5 GbE LAN Chip |
| Multi-GPU Modus | Nicht unterstützt |
| RAID SATA | 0, 1, 10 |
| Beleuchtungsfarbe | RGB LED |
| Farbe | schwarz |
| Gewicht (g) | 1,3 kg |
| Breite (cm) | 30.50 |
| Tiefe (cm) | 24.40 |
| internal graphics | Yes |
| verfügbare Slots | 4 |
