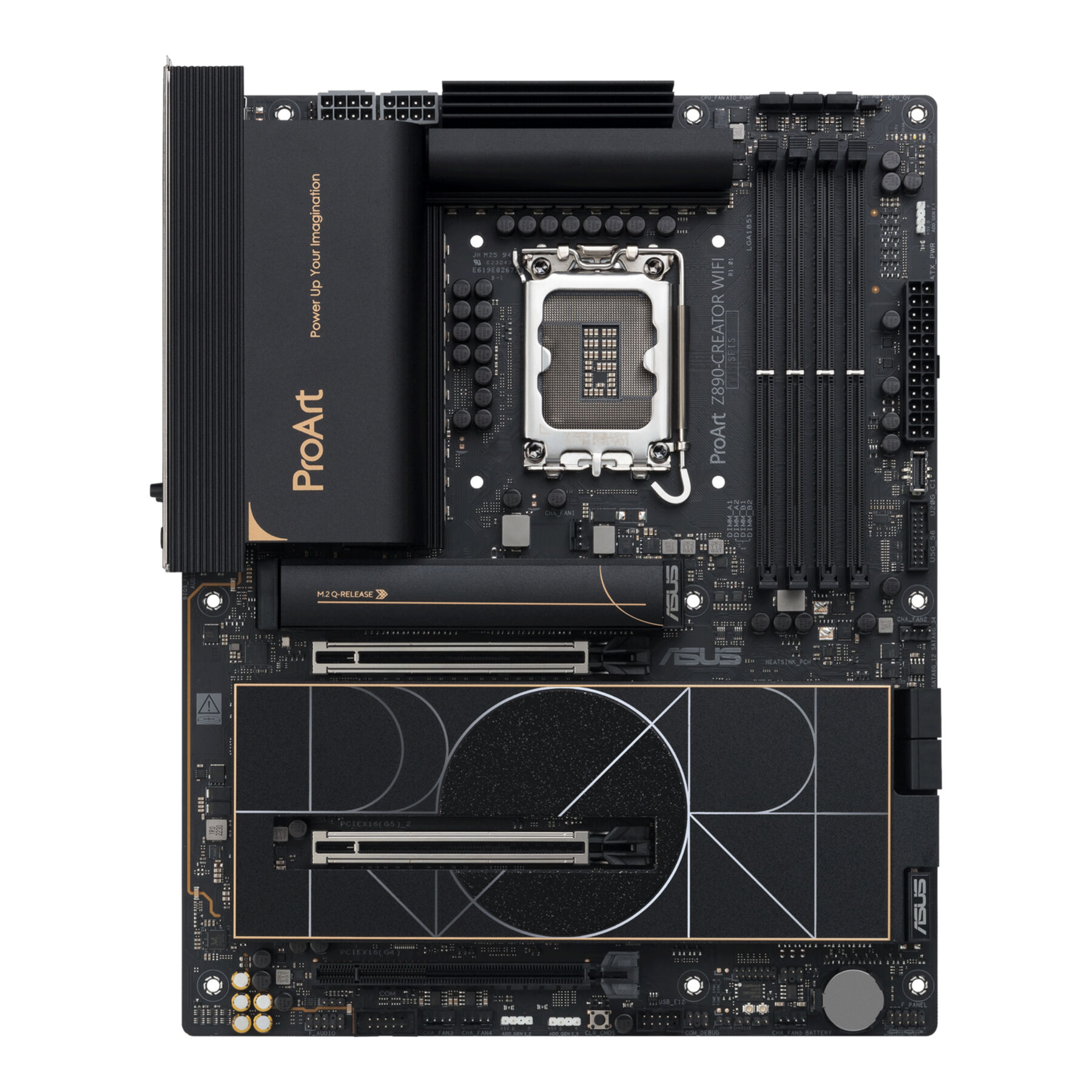

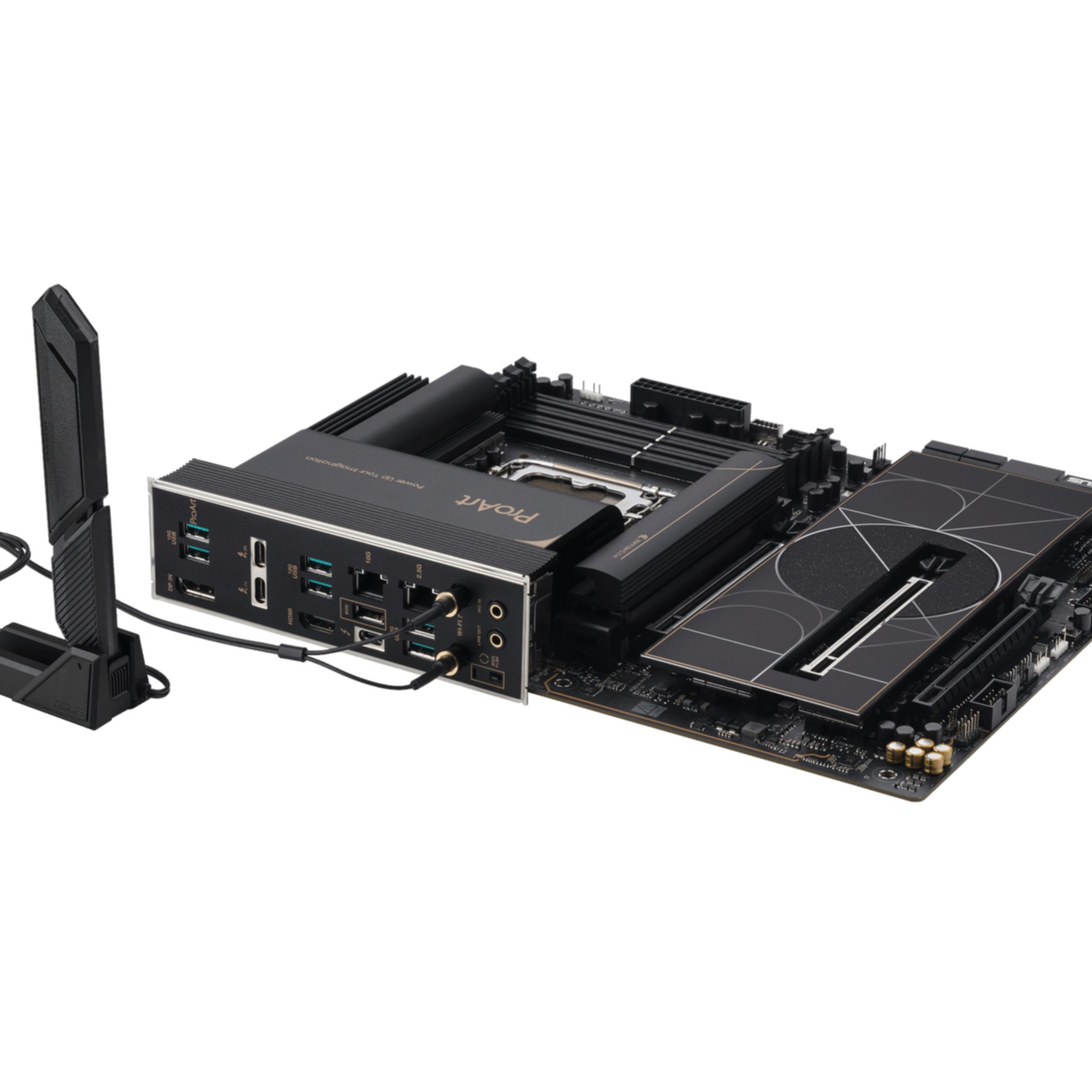

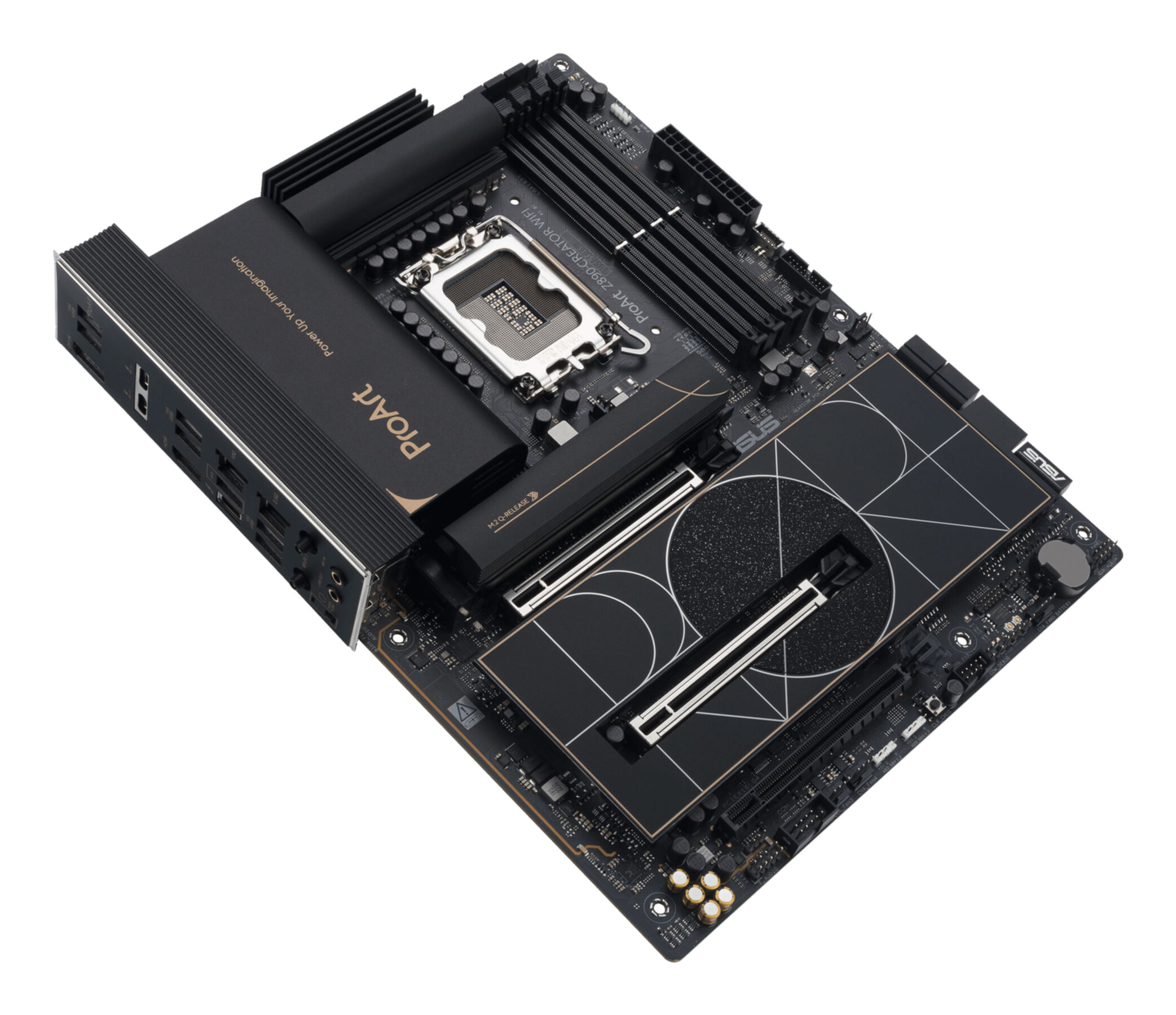

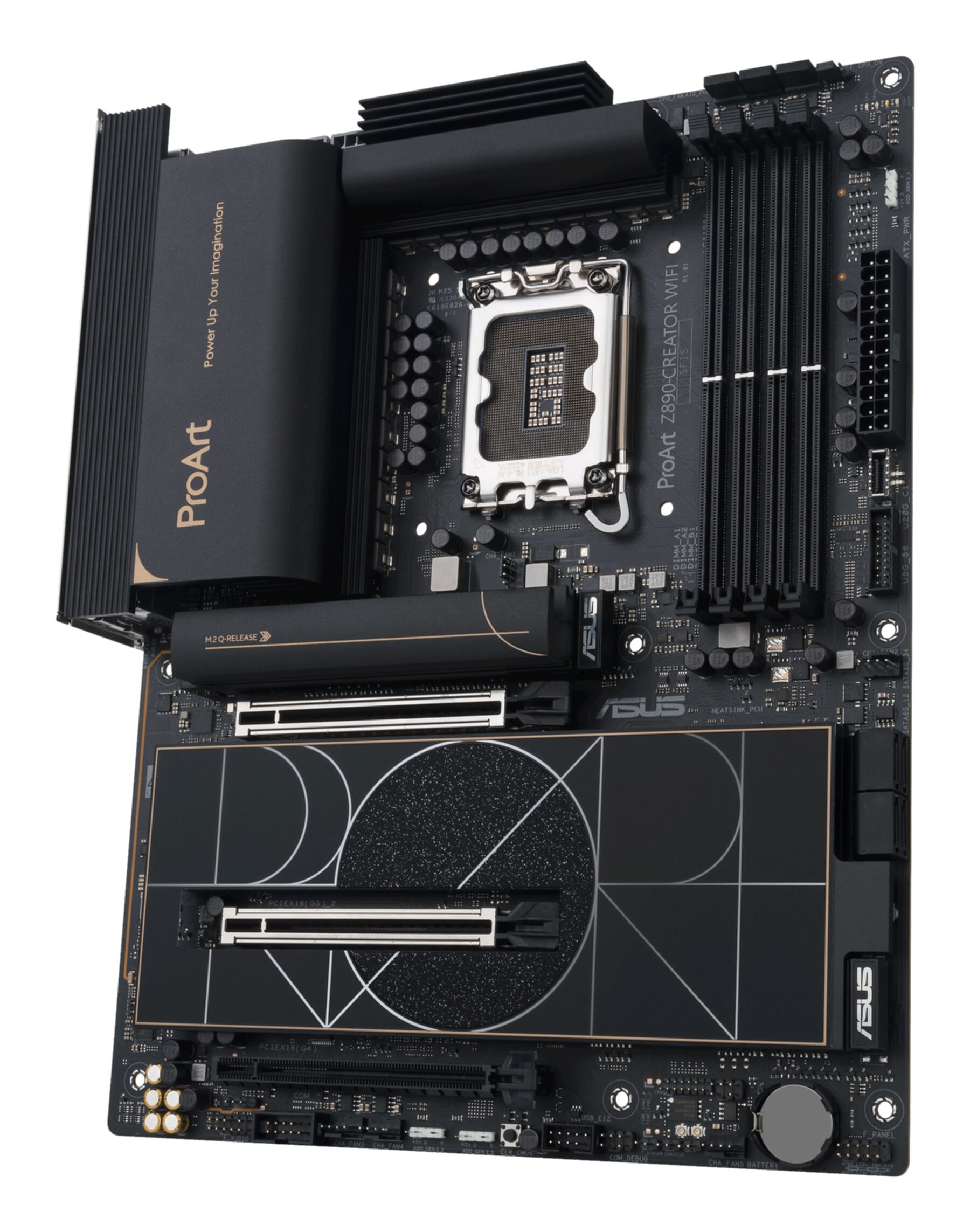

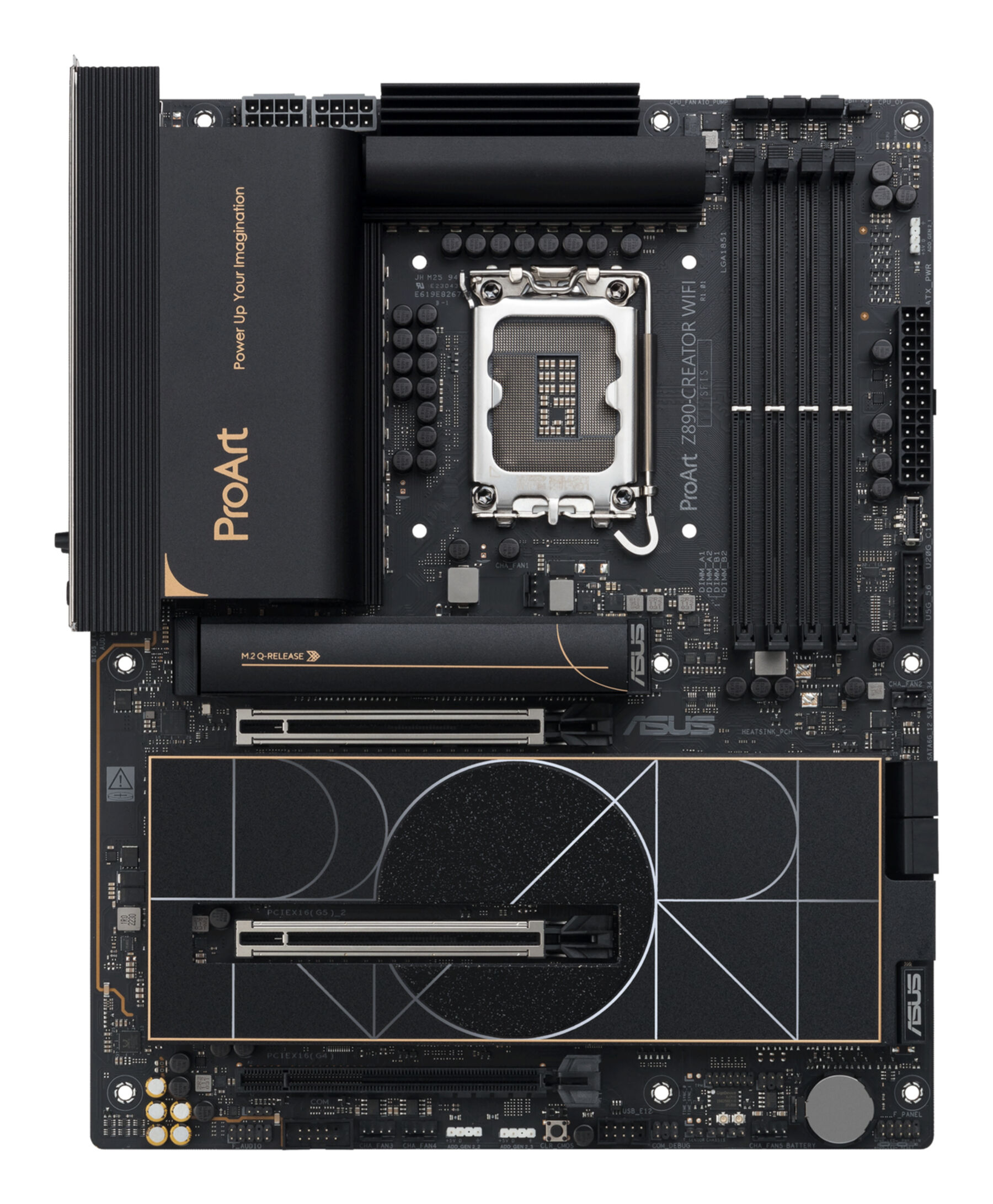

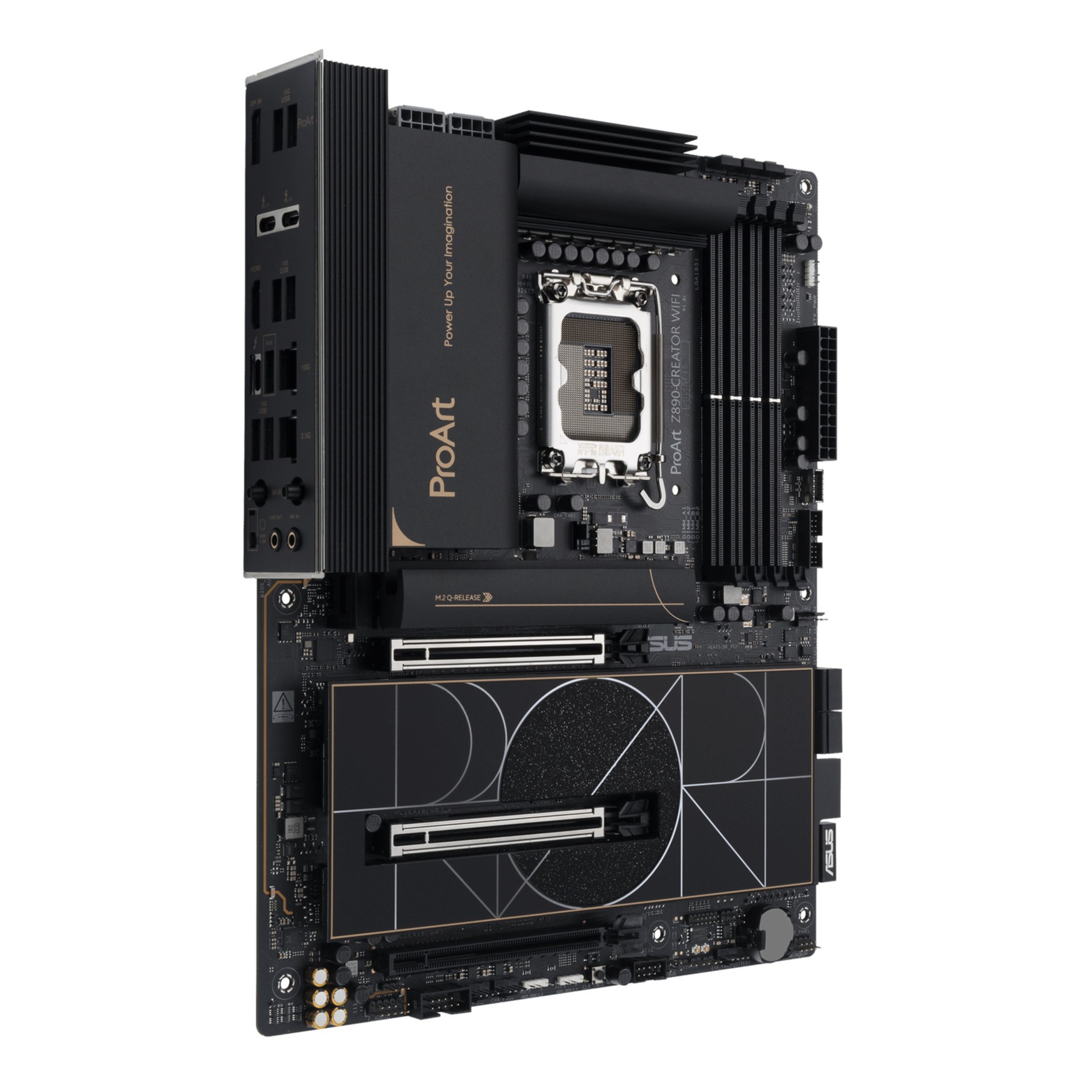

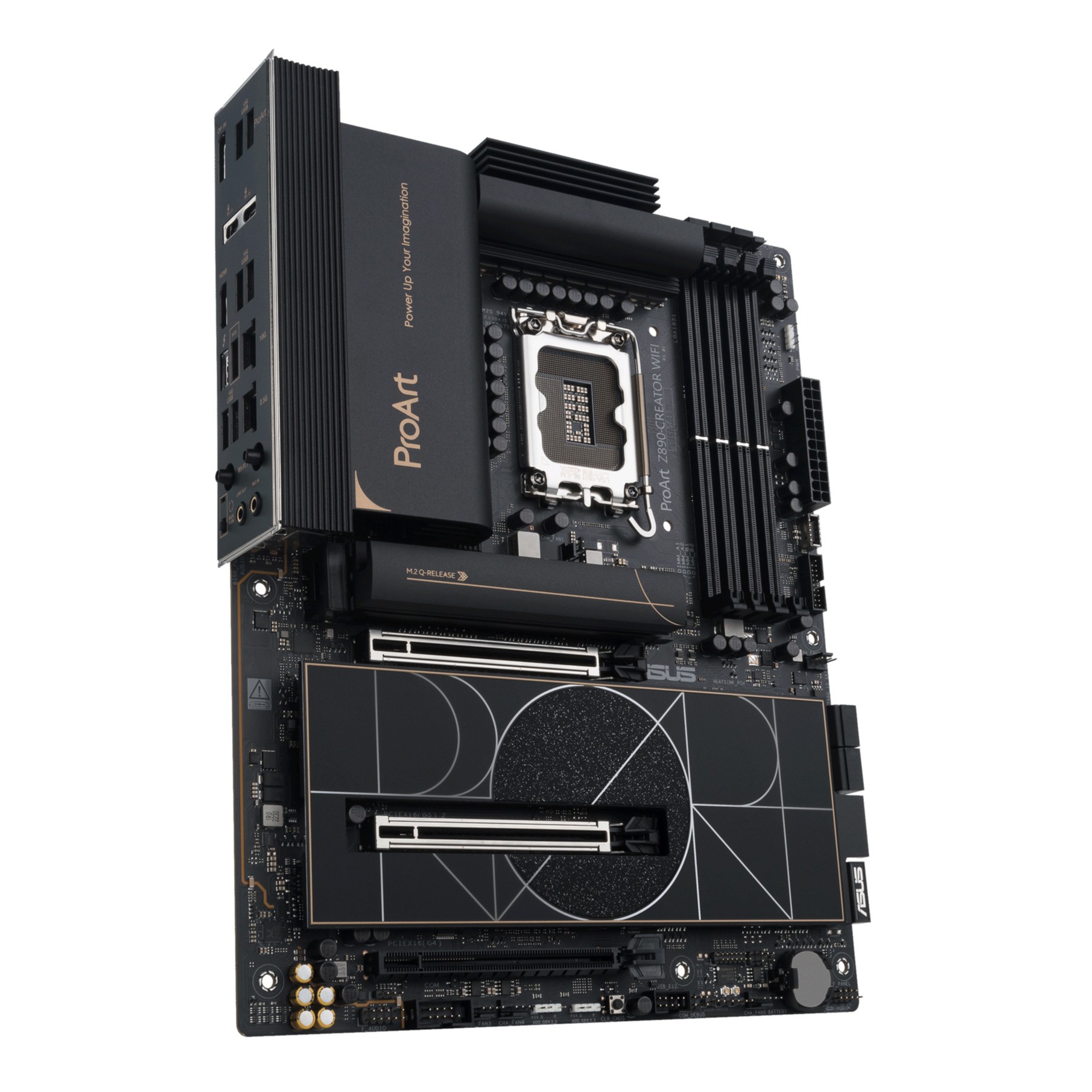

ASUS PROART Z890-CREATOR WIFI (1851) (D)
- Order number: 86743
- Available from: 19.02.2027
- Supplier number: 90MB1JD0-M0EAY0
- EAN: 4711387766163
- Socket: LGA 1851 (Socket V1)
- Internal memory max.: 192 GB
- Chipset: Intel Z890
- Form factor: ATX
| Eigenschaften | |
| unterstützte Prozessormodelle | Intel Core Ultra (Series 2) |
| Socket | LGA 1851 (Socket V1) |
| Chipset | Intel Z890 |
| BIOS | UEFI AMI |
| Form Factor | ATX |
| geeignet für freien Multiplikator | ja |
| RAM | |
| Speicher max. | 192 GB |
| Memory Spaces | 4 |
| Speicher je Speicherplatz | 32GB |
| Memory Type | DDR5-SDRAM |
| RAM Takt | 9066 MHz |
| Speicher Kanäle | Zweikanalig |
| Speichertyp | non-ECC;un-buffered |
| Controller in CPU | ja |

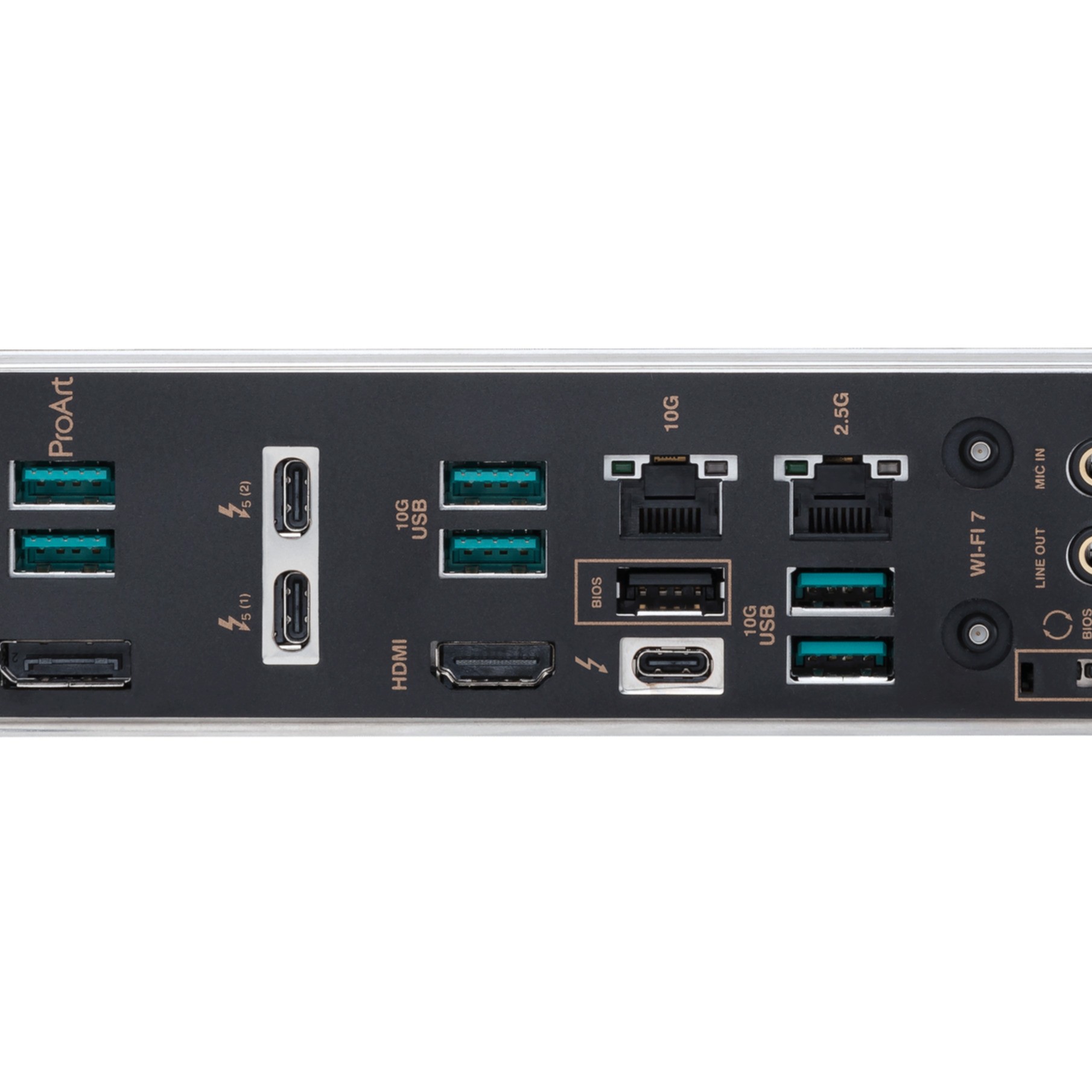

| Anschlüsse extern | |
| LAN (RJ45) | 2.5 Gigabit Ethernet, 10 Gigabit Ethernet |
| USB 3.1 | 6 |
| USB 3.0 | 0 |
| USB 2.0 | 1 |
| USB C | 3 |
| VGA | 0 |
| HDMI | 1 |
| DisplayPort | 1 |
| Mikrofon | 1 |
| Line-Out 3,5 mm Klinke | 4 |
| S/PDIF-Out (optisch) | 1 |
| Anschlüsse intern | |
| PCIe 5.0 | 2x PCIe x16 |
| PCIe 3.0 | 2 |
| Mainbord Strom | 24pin |
| CPU Strom | 2x8pin; 1x 6-Pin |
| SATA 3 | 4 |
| M.2 | 5 |
| M.2 Länge max. | 110mm |
| M.2 Konnektor | M |
| USB-Header USB 2.0 | 1 |
| USB-Header USB 3.0 | 1 |
| USB-Header USB C | 1 |
| Lüfter 4-polig PWM | 5 |
| Sound | |
| Sound-Chip | Realtek ALC1220P |
| Sonstiges | |
| LAN | 1x Marvell 10GbE; 1x Intel I225-V 2.5GbE |
| Multi-GPU | ja |
| Multi-GPU Modus | Nicht unterstützt |
| RAID SATA | 0, 1, 5, 10 |
| RAID M.2 | 0;1;5 |
| Beleuchtungsfarbe | RGB |
| Farbe | schwarz |
| Gewicht (g) | 1,97 kg |
| Breite (cm) | 30.50 |
| Tiefe (cm) | 27.70 |
| internal graphics | Yes |
| verfügbare Slots | 6 |
