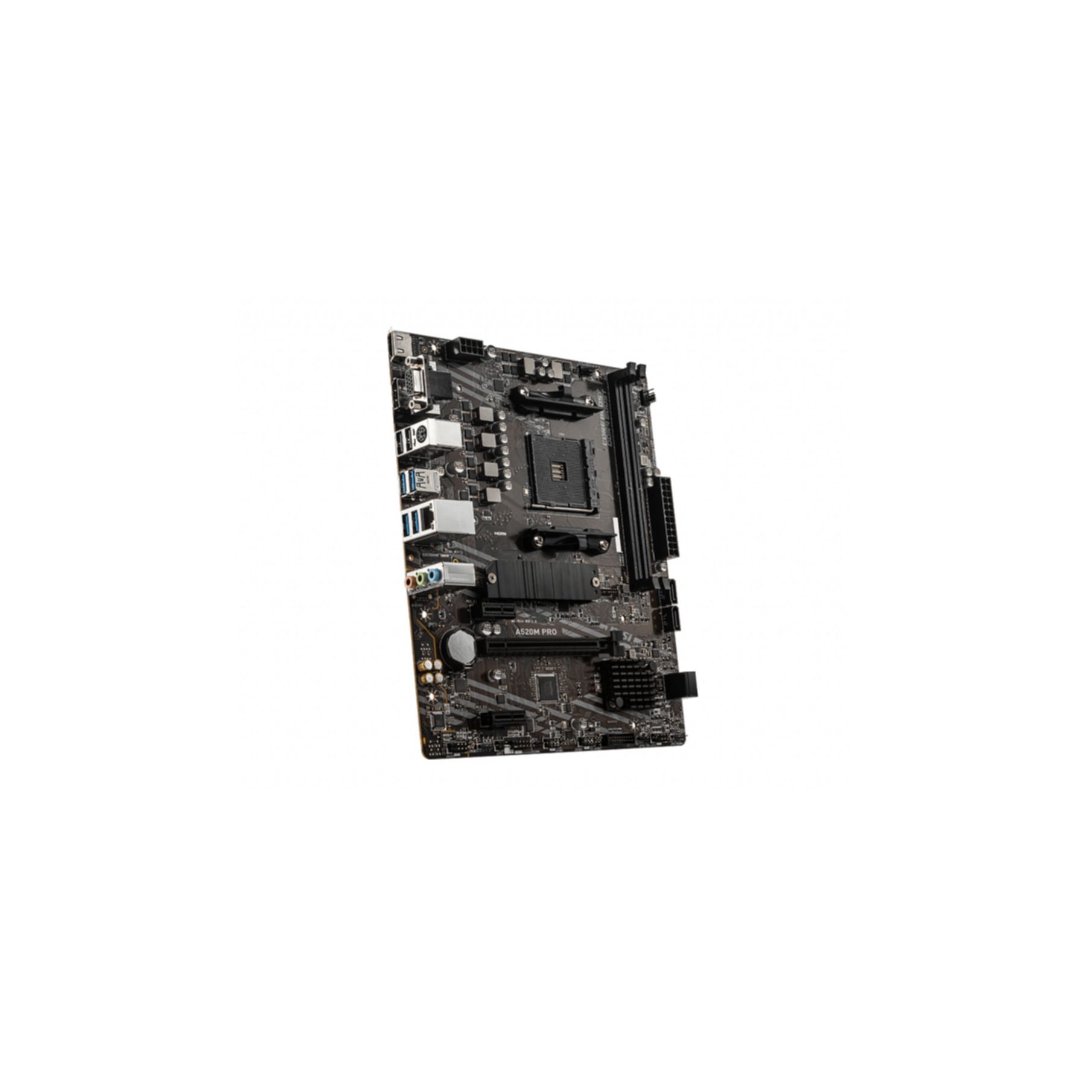

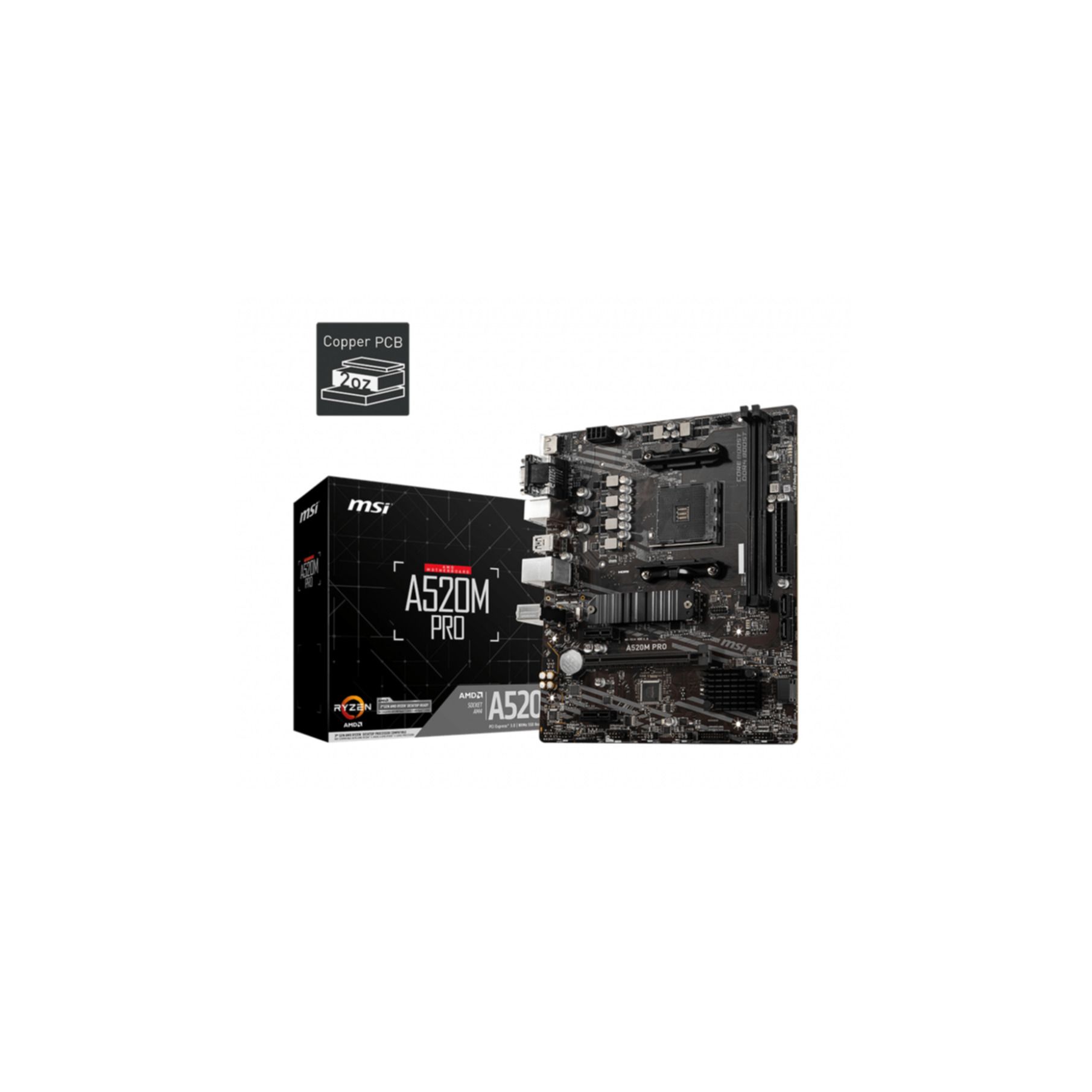

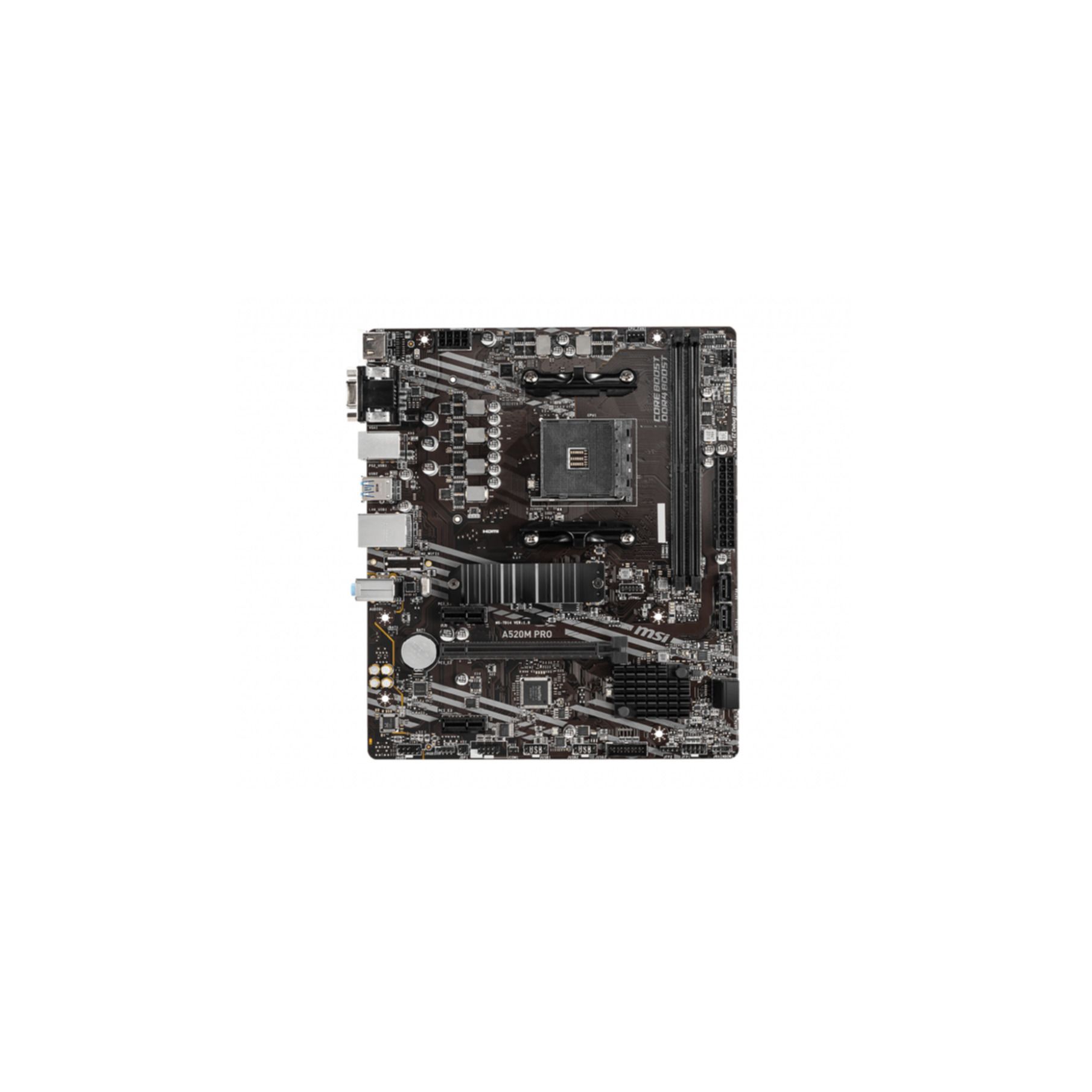

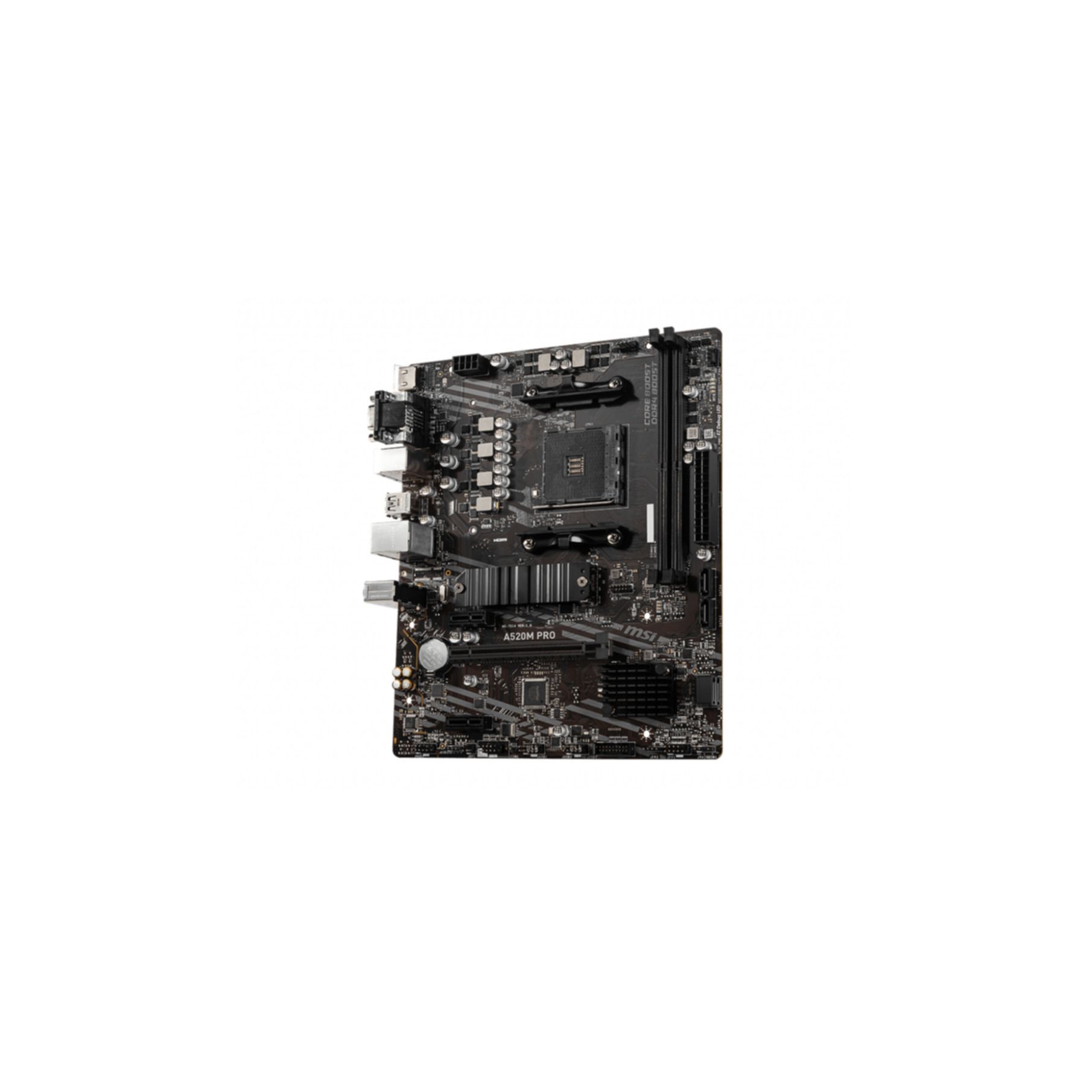

MSI A520M PRO (AM4) (D)
- Order number: 56596
- Supplier number: 7D14-005R
- EAN: 4719072755492
- Socket: Socket AM4
- Internal memory max.: 64 GB
- Chipset: AMD A520
- Form factor: micro ATX
Eigenschaften | |
unterstützte Prozessormodelle | AMD Ryzen 3000 Series |
Sockel | Sockel AM4 |
Chipsatz | AMD A520 |
BIOS | AMI UEFI |
Formfaktor | micro ATX |
geeignet für freien Multiplikator | ja |
RAM | |
Speicher max. | 64 GB |
Memory slots | 2 |
Speicher je Speicherplatz | 32GB |
Storage type | DDR4-SDRAM |
RAM Takt | 1866,2133,2400,2667,2800,2933,3000,3066,3200,3466,3600,3733,3866,4000,4133,4266,4400,4466 MHz |
Speicher Kanäle | Zweikanalig |
Speichertyp | non-ECC;unbuffered |
Controller in CPU | ja |

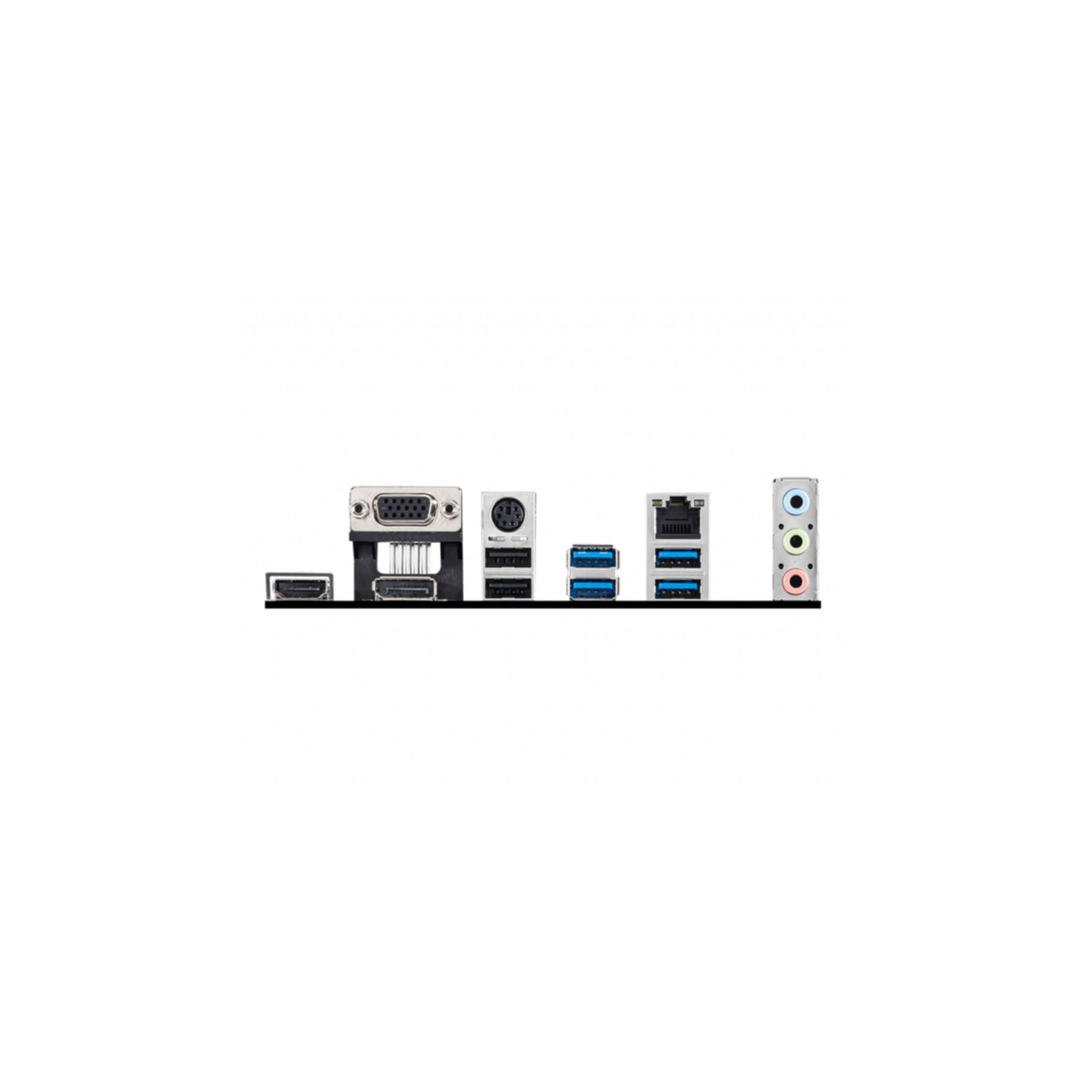

Anschlüsse extern | |
LAN (RJ45) | Gigabit Ethernet |
PS/2 (Tastatur/Maus) | 1 |
USB 3.1 | 0 |
USB 3.0 | 4 |
USB 2.0 | 2 |
VGA | 1 |
HDMI | 1 |
DisplayPort | 1 |
Mikrofon | 1 |
Line-Out 3,5 mm Klinke | 2 |
Anschlüsse intern | |
PCIe 3.0 | 2 |
Mainbord Strom | 24pin |
CPU Strom | 8pin |
SATA 3 | 4 |
M.2 | 1 |
M.2 Länge max. | 80mm |
M.2 Konnektor | M |
USB-Header USB 2.0 | 2 |
USB-Header USB 3.0 | 1 |
USB-Header USB C | 0 |
Lüfter 4-polig PWM | 1 |
Sound | |
Sound-Chip | Realtek ALC892 |
Sonstiges | |
LAN | Realtek 8111H |
RAID SATA | 0, 1, 10 |
Beleuchtungsfarbe | RGB LED |
Farbe | schwarz;silber |
Gewicht (g) | 698 g |
Breite (cm) | 24.40 |
Tiefe (cm) | 21 |
Verpackungsinhalt | Installationsanleitung, 2 Sata-Kabel; I/O Abdeckung; Installations-CD; Produktregistrierungscode; MSI Badge |
Internal graphic | yes |
verfügbare Slots | 3 |
