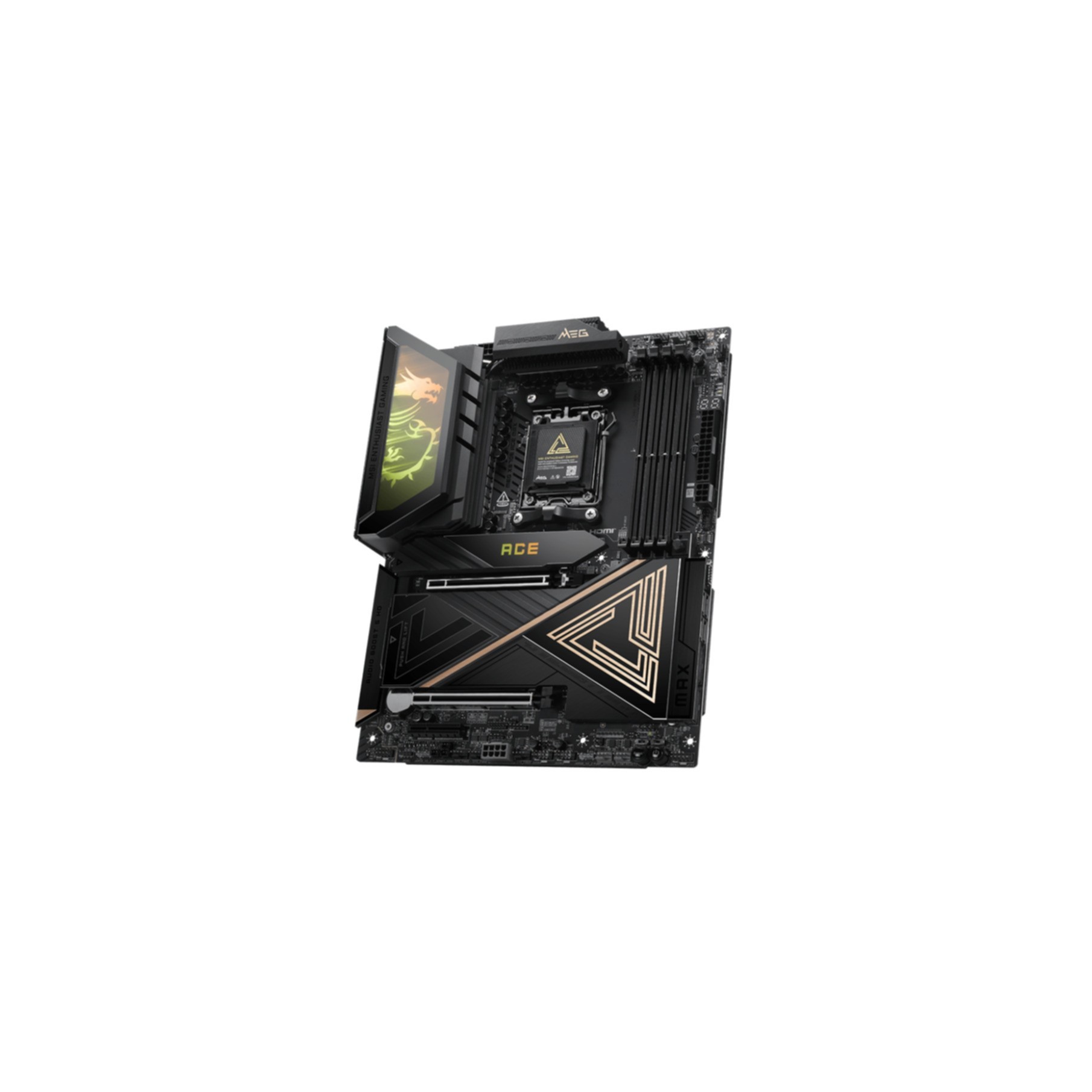

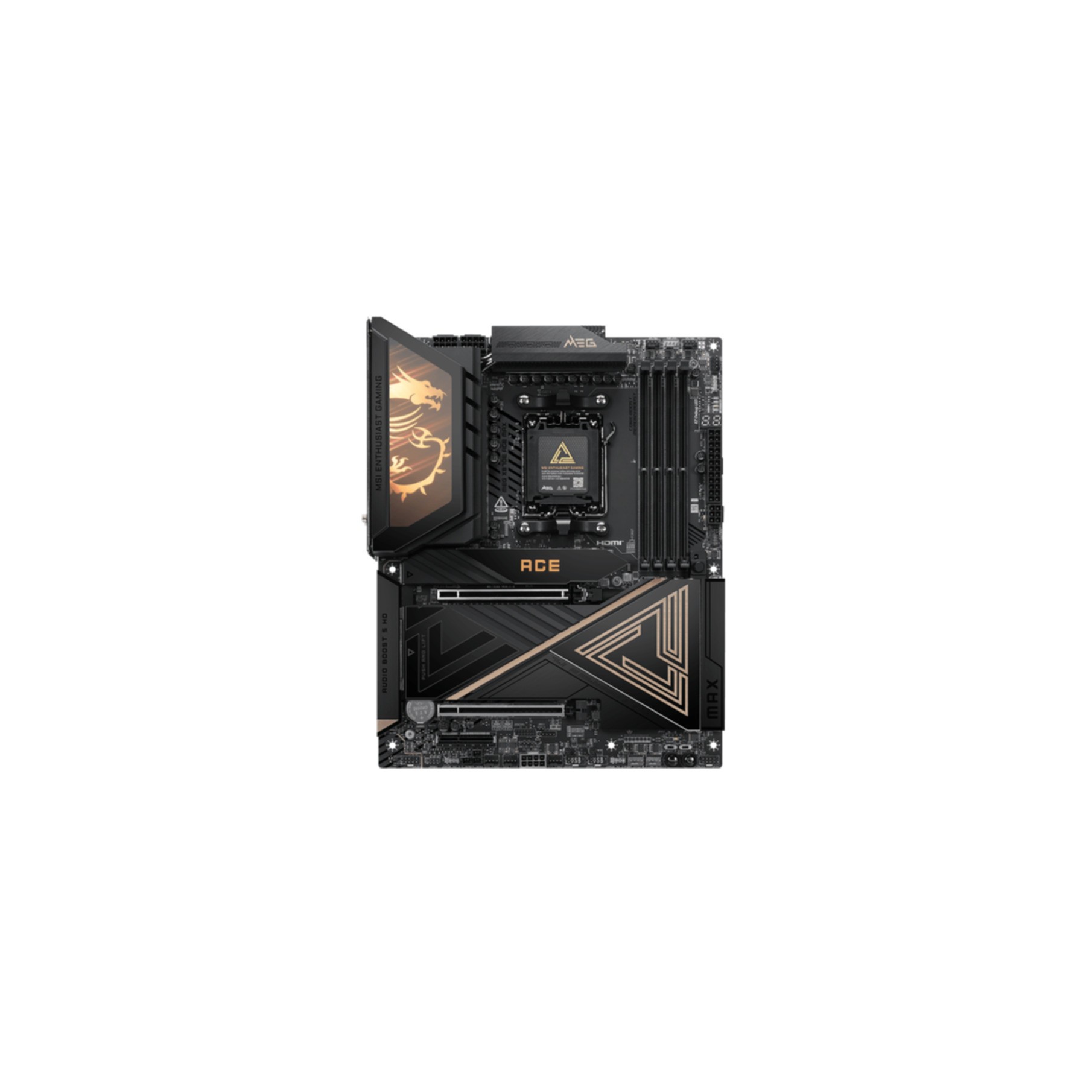

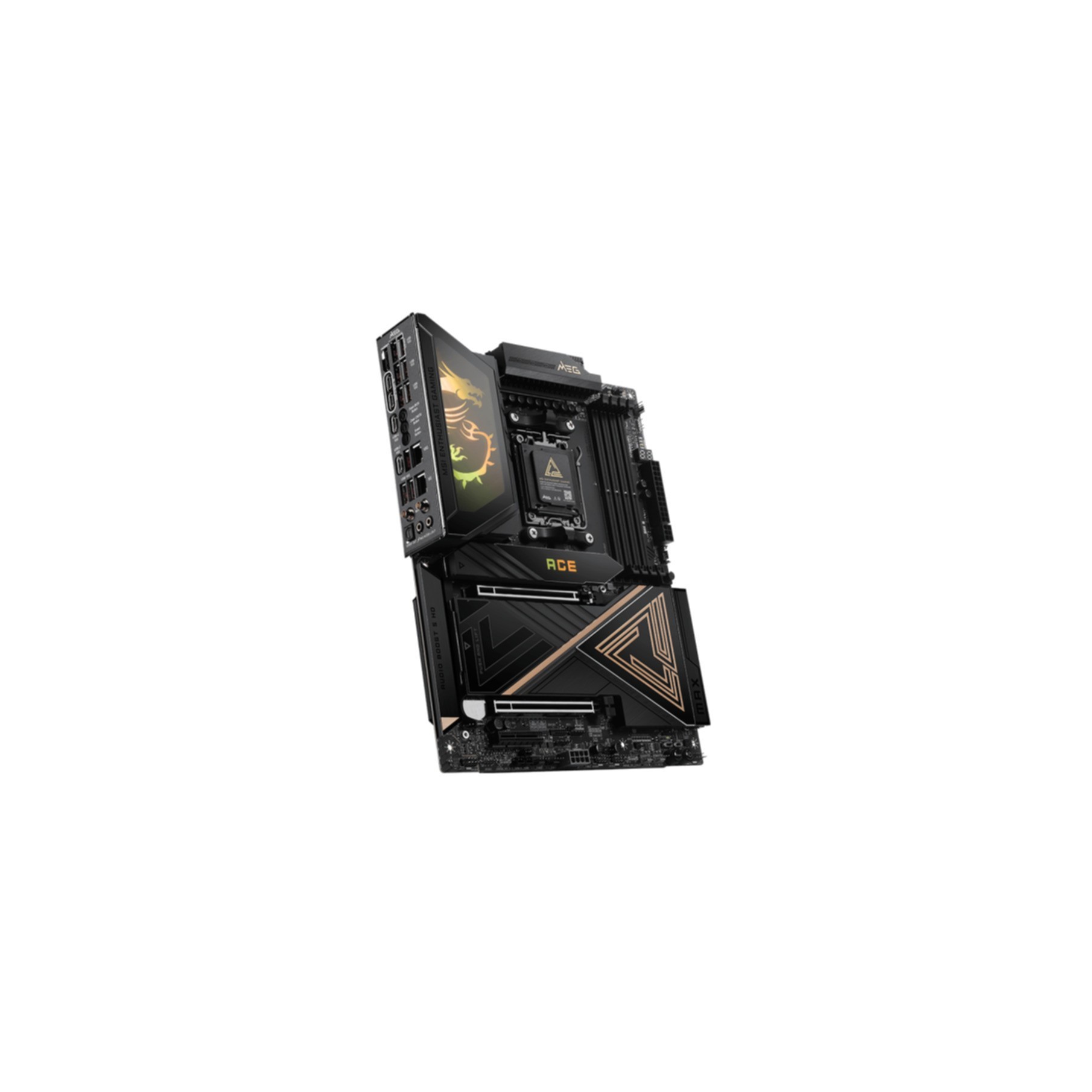

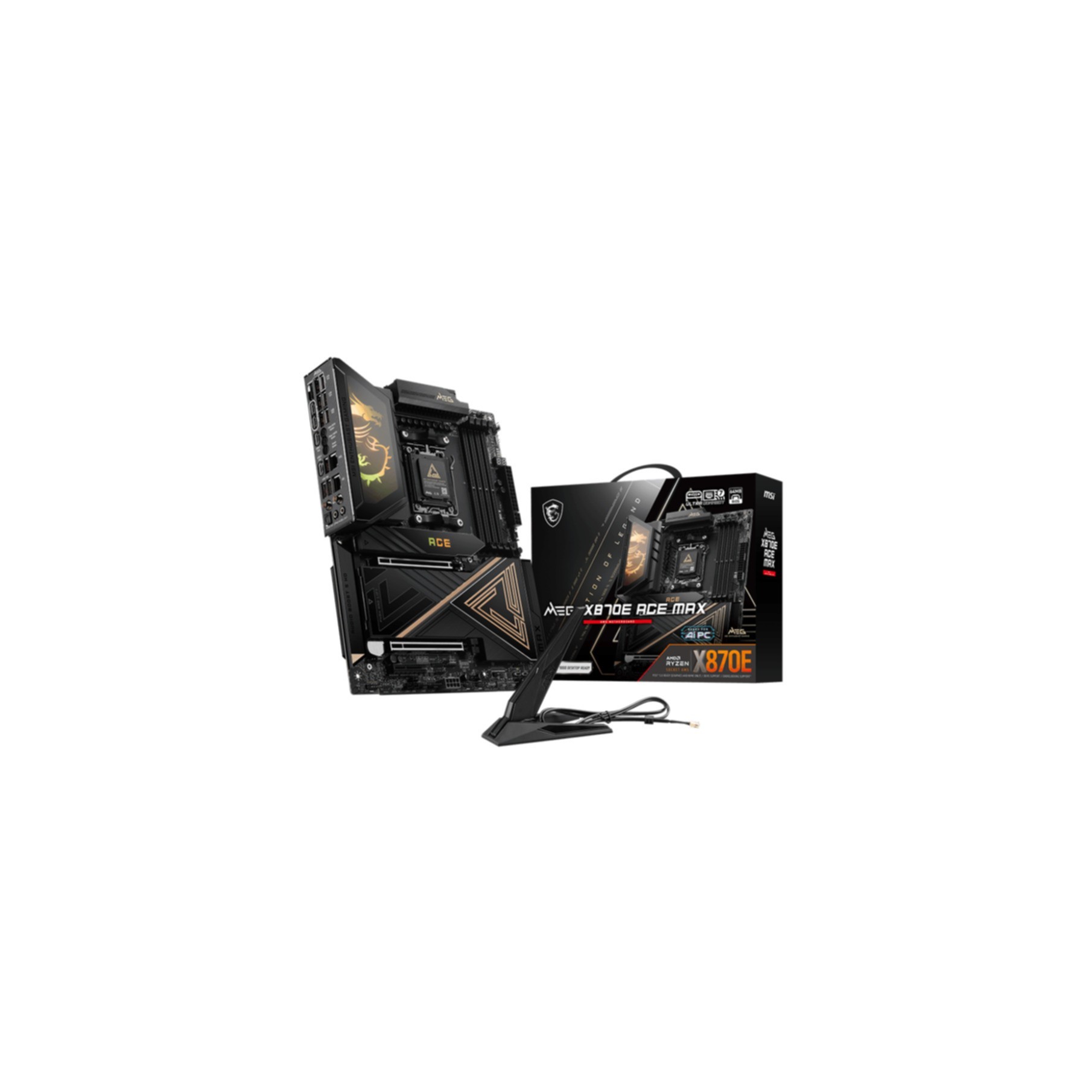

MSI MEG X870E ACE MAX (AM5) (D)

Prices for registered customers only
Sign in Register as a new customer now
Eigenschaften
unterstützte Prozessormodelle AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Socket Socket AM5
Chipset AMD X870E
BIOS UEFI AMI
Form Factor ATX
geeignet für freien Multiplikator ja
RAM
Speicher max. 256 GB
Memory Spaces 4
Speicher je Speicherplatz 32 GB
Memory Type DDR5-SDRAM
RAM Takt 4800,5600,6400,9000 MHz
Speicher Kanäle Zweikanalig
Speichertyp non-ECC;un-buffered
Controller in CPU ja

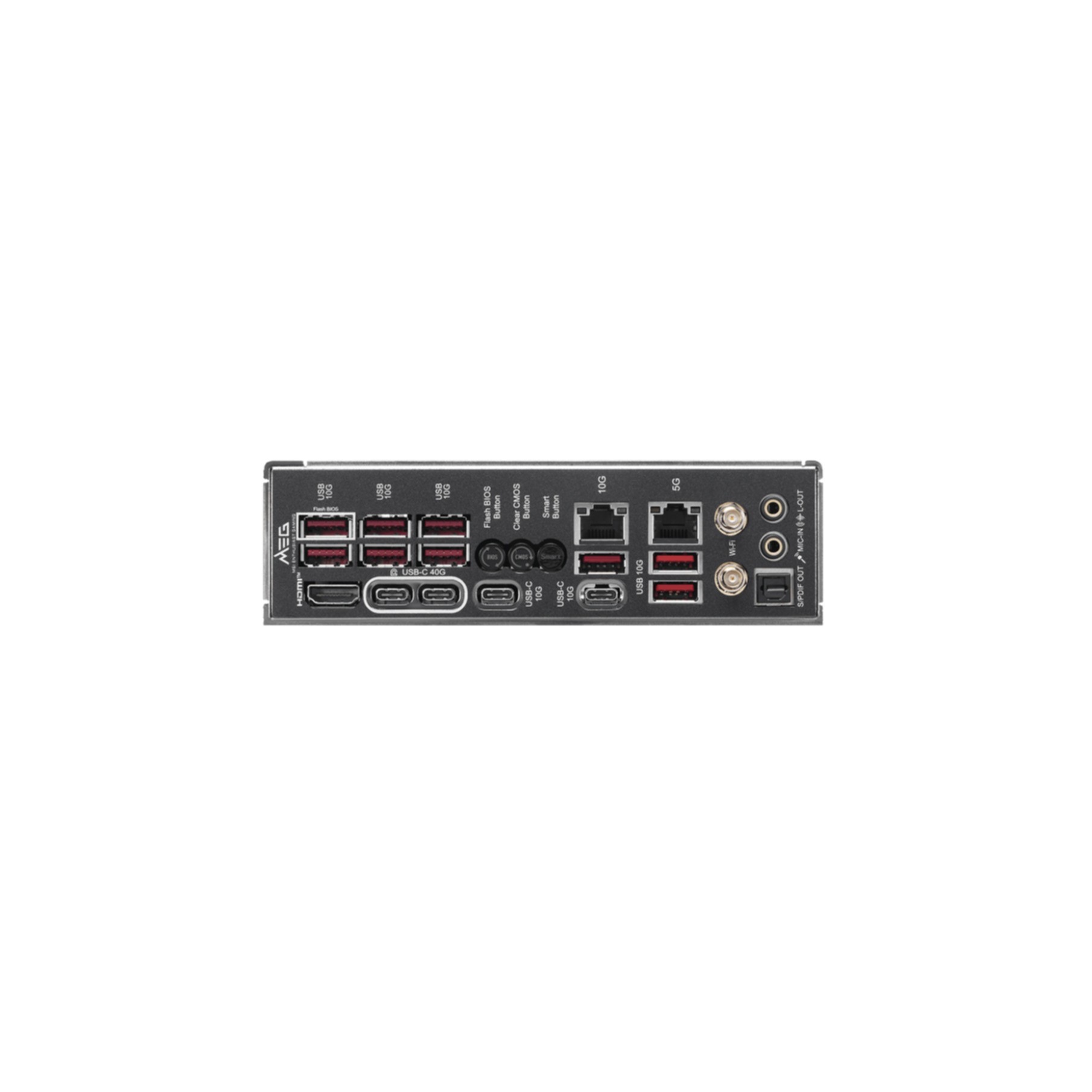

Anschlüsse extern
LAN (RJ45) 5 Gigabit Ethernet
USB 3.1 9
USB 3.0 0
USB 2.0 0
USB C 2
VGA 0
HDMI 0
DisplayPort 2
Mikrofon 1
Line-Out 3,5 mm Klinke 4
S/PDIF-Out (optisch) 1
Anschlüsse intern
PCIe 5.0 2x PCIe x16
PCIe 4.0 1
Mainbord Strom 24pin
CPU Strom 2x8pin
SATA 3 4
M.2 5
M.2 Länge max. 110mm
M.2 Konnektor M
USB-Header USB 2.0 4
USB-Header USB 3.0 4
USB-Header USB C 1
Lüfter 4-polig PWM 6
Sound
Sound-Chip 7.1 Kanäle
Sonstiges
LAN Realtek RTL8125-BG
RAID SATA 0, 1, 10
RAID M.2 0;1;10
Beleuchtungsfarbe RGB LED
Farbe schwarz
Breite (cm) 30.40
Tiefe (cm) 24.30
internal graphics Yes
verfügbare Slots 6
GPSR

Micro-Star Int'l Co., Ltd.

Science Parkt Eindhoven 5706
5692 Eindhoven
Netherlands
https://de.msi.com/page/formular
