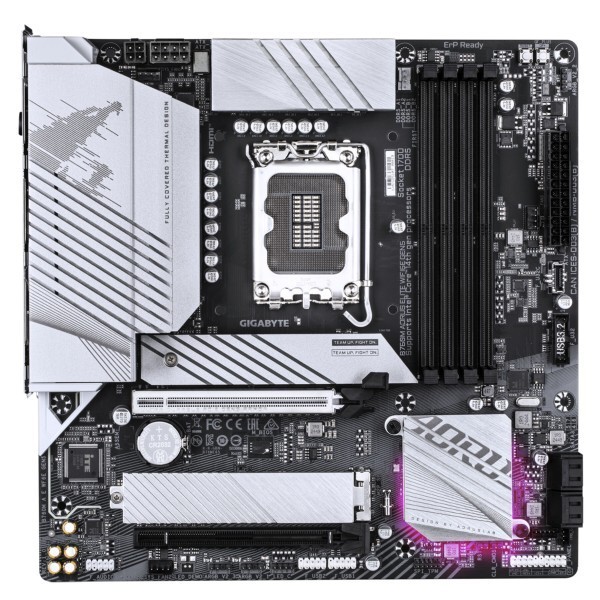

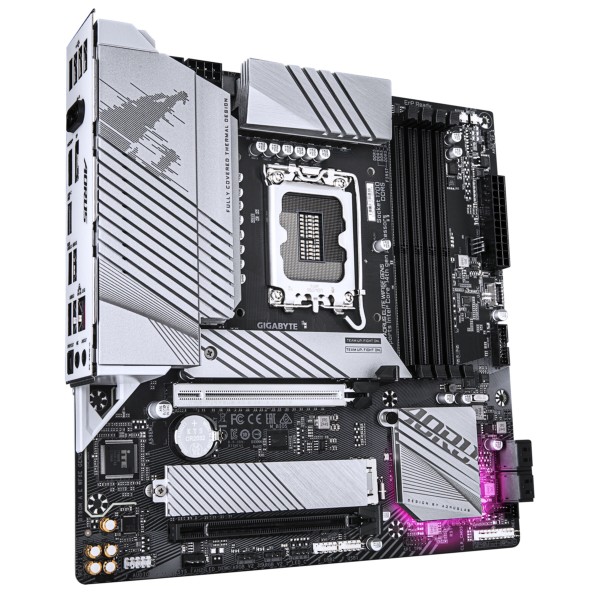

Gigabyte GA-B760M A E WF6E GEN5 (1700) (D)
- Réf. d'article : 93847
- Numéro du fabricant: B760M A E WF6E GEN5
- EAN: 4719331872069
- Socket: LGA 1700
- Internal memory max.: 256 GB
- Chipset: Intel B760
- Form factor: micro ATX
| Eigenschaften | |
| unterstützte Prozessormodelle | Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i5 14th Gen, Intel Core i7 12th Gen, Intel Core i7 13th Gen, Intel Core i7 14th Gen, Intel Core i9 12th Ge |
| Douille | LGA 1700 |
| Chipset | Intel B760 |
| BIOS | 256 Mbit |
| Format | Micro ATX |
| geeignet für freien Multiplikator | nein |
| RAM | |
| Speicher max. | 256 GB |
| Espaces mémoire | 4 |
| Speicher je Speicherplatz | 64 GB |
| Type de mémoire | DDR5-SDRAM |
| RAM Takt | 4400,4800,5200,5600 MHz |
| Speicher Kanäle | Zweikanalig |
| Speichertyp | non-ECC |
| Controller in CPU | ja |

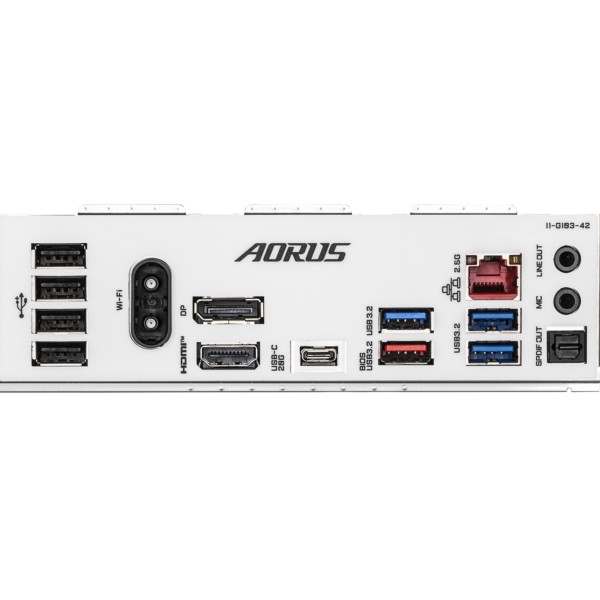

| Anschlüsse extern | |
| LAN (RJ45) | 2.5 Gigabit Ethernet |
| PS/2 (Tastatur/Maus) | 1 |
| USB 3.1 | 1 |
| USB 3.0 | 3 |
| USB 2.0 | 4 |
| USB C | 1 |
| VGA | 0 |
| HDMI | 1 |
| DisplayPort | 1 |
| Mikrofon | 1 |
| Line-Out 3,5 mm Klinke | 4 |
| S/PDIF-Out (optisch) | 1 |
| Anschlüsse intern | |
| PCIe 4.0 | 1 |
| PCIe 3.0 | 1 |
| Mainbord Strom | 24pin |
| CPU Strom | 8+4pin |
| SATA 3 | 4 |
| M.2 | 2 |
| M.2 Länge max. | 110mm |
| M.2 Konnektor | M |
| USB-Header USB 2.0 | 2 |
| USB-Header USB 3.0 | 1 |
| USB-Header USB C | 1 |
| Lüfter 4-polig PWM | 3 |
| Sound | |
| Sound-Chip | Realtek ALC1220-VB |
| Sonstiges | |
| LAN | Realtek RTL8125 |
| Multi-GPU | ja |
| Multi-GPU Modus | Nicht unterstützt |
| RAID SATA | 0, 1, 5, 10 |
| Beleuchtungsfarbe | RGB |
| Farbe | schwarz |
| Gewicht (g) | 1,33 kg |
| Graphismes internes | Oui |
| verfügbare Slots | 3 |
