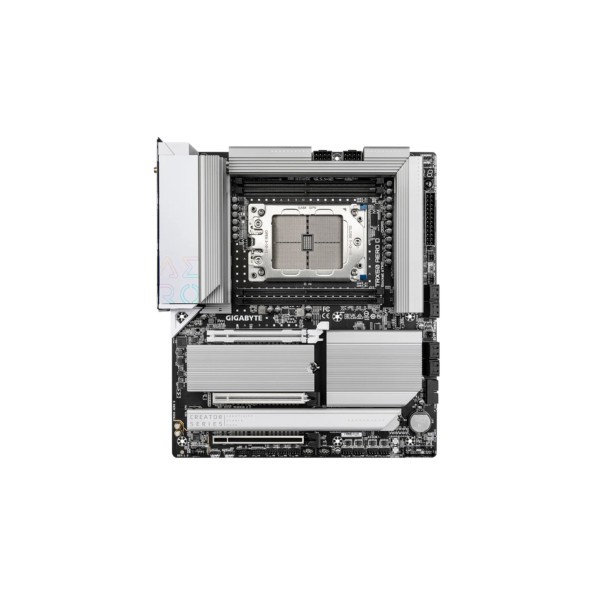

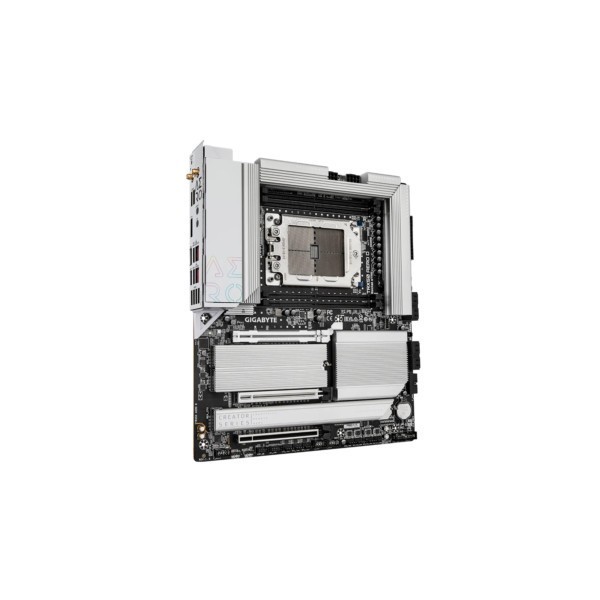

Gigabyte TRX50 AERO D (sTR5) (D)
- Réf. d'article : 78771
- Numéro du fabricant: TRX50 AERO D
- EAN: 4719331859480
- Socket: Socket sTR5
- Internal memory max.: 1 TB
- Chipset: AMD TRX50
- Form factor: Extended ATX
| Eigenschaften | |
| unterstützte Prozessormodelle | AMD Ryzen Threadripper 1000 Series |
| Douille | Douille sTR5 |
| Chipset | AMD TRX50 |
| BIOS | UEFI AMI |
| Format | ATX étendu |
| geeignet für freien Multiplikator | ja |
| RAM | |
| Speicher max. | 1 TB |
| Espaces mémoire | 4 |
| Speicher je Speicherplatz | 32 GB |
| Type de mémoire | DDR5-SDRAM |
| RAM Takt | 4400,4800,5200,5600,6000,6400,6800,7000,7200,7600,7800 MHz |
| Speicher Kanäle | Vierfach-Kanal |
| Speichertyp | non-ECC un-buffered;ECC unbuffered |
| Controller in CPU | ja |

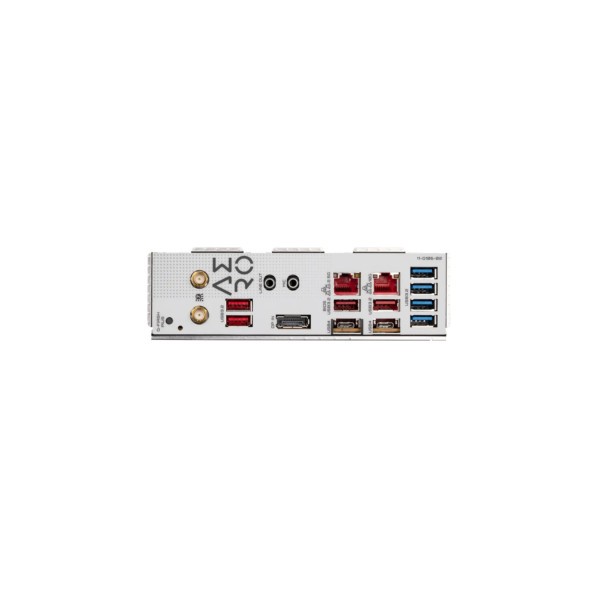

| Anschlüsse extern | |
| LAN (RJ45) | 10 Gigabit Ethernet |
| USB 3.1 | 4 |
| USB 3.0 | 4 |
| USB 2.0 | 0 |
| USB C | 1 |
| VGA | 0 |
| HDMI | 0 |
| DisplayPort | 1 |
| Mikrofon | 1 |
| Line-Out 3,5 mm Klinke | 4 |
| S/PDIF-Out (optisch) | 1 |
| Anschlüsse intern | |
| PCIe 4.0 | 2x PCIe x16; 2x PCIe x16 (x8) |
| Mainbord Strom | 24pin |
| CPU Strom | 8+8pin |
| SATA 3 | 8 |
| M.2 | 4 |
| M.2 Länge max. | 110mm |
| M.2 Konnektor | M |
| USB-Header USB 2.0 | 2 |
| USB-Header USB 3.0 | 1 |
| USB-Header USB C | 0 |
| Lüfter 4-polig PWM | 10 |
| Sound | |
| Sound-Chip | 2.0 Kanäle |
| Sonstiges | |
| LAN | 2x GbE LAN |
| Multi-GPU | ja |
| Multi-GPU Modus | SLI;2-Way-SLI;3-Way-SLI;Quad-SLI;CrossFireX;2-Way-CrossFireX;3-Way-CrossFireX;Quad-CrossFireX |
| RAID SATA | 0, 1, 10 |
| Beleuchtungsfarbe | RGB |
| Farbe | schwarz |
| Gewicht (g) | 2618 |
| Breite (cm) | 30.50 |
| Tiefe (cm) | 26.90 |
| Verpackungsinhalt | Bedienungsanleitung;Treiber CD;I/O Blende |
| Graphismes internes | non |
| verfügbare Slots | 5 |
| zusätzliche Informationen | 2x Anschluss für Antenne (2T2R) |
