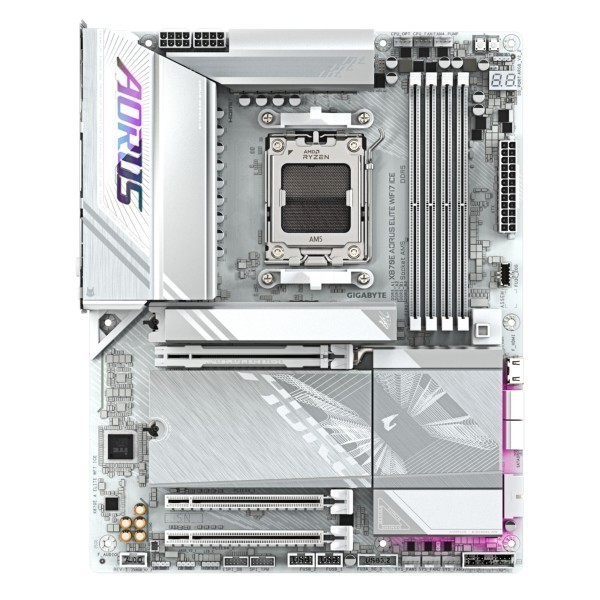

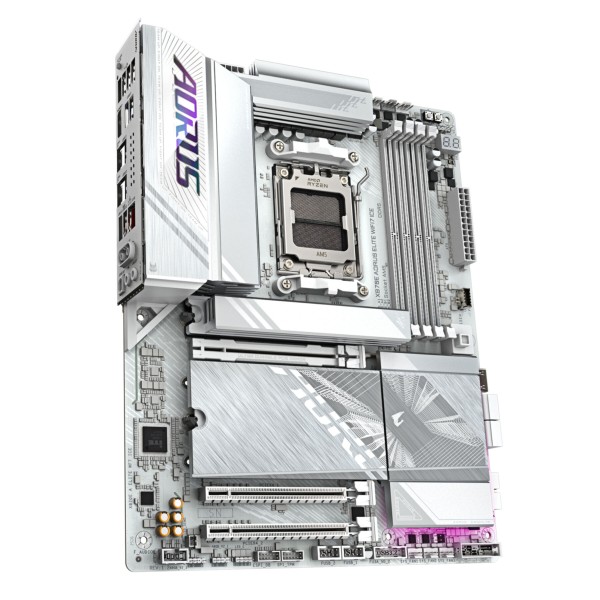

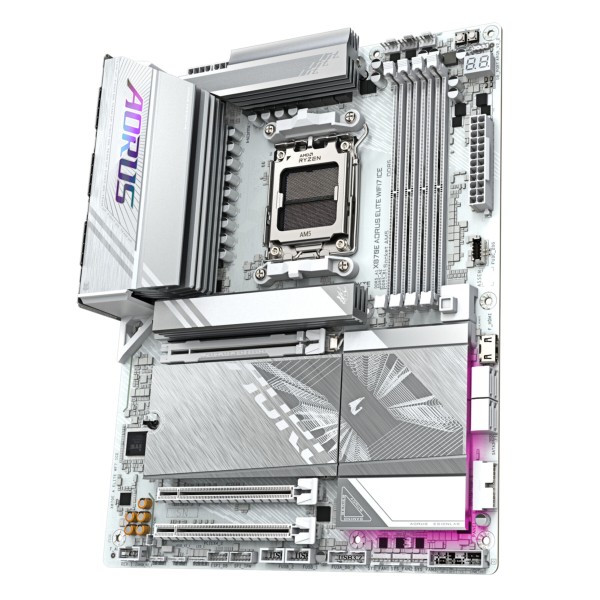

Gigabyte GA-X870E A ELITE WIFI7 ICE (AM5) (D)
- Réf. d'article : 90696
- Entrée en stock: 19.10.2026
- Numéro du fabricant: X870E A ELITE WIFI7 ICE
- EAN: 4719331871529
- Socket: Socket AM5
- Internal memory max.: 256 GB
- Chipset: AMD X870E
- Form factor: ATX
| Eigenschaften | |
| unterstützte Prozessormodelle | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Douille | Prise AM5 |
| Chipset | AMD X870E |
| BIOS | UEFI AMI, 256 Mbit |
| Format | ATX |
| geeignet für freien Multiplikator | ja |
| RAM | |
| Speicher max. | 256 GB |
| Espaces mémoire | 4 |
| Speicher je Speicherplatz | 64 GB |
| Type de mémoire | DDR5-SDRAM |
| RAM Takt | 8200,8000,7800,7600,7200,7000,6800,6666,6600,6400,6200,6000,5600,5200,4800,4400 MHz |
| Speicher Kanäle | Zweikanalig |
| Speichertyp | non-ECC;un-buffered |
| Controller in CPU | ja |

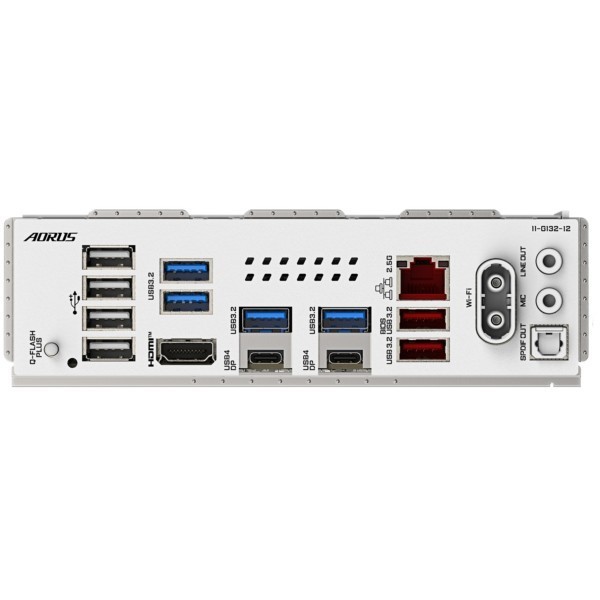

| Anschlüsse extern | |
| LAN (RJ45) | 2.5 Gigabit Ethernet |
| PS/2 (Tastatur/Maus) | 0 |
| USB 3.1 | 2 |
| USB 3.0 | 4 |
| USB 2.0 | 4 |
| VGA | 0 |
| DVI | 1 |
| HDMI | 1 |
| DisplayPort | 0 |
| Mikrofon | 1 |
| Line-Out 3,5 mm Klinke | 5 |
| Anschlüsse intern | |
| PCIe 4.0 | 1 |
| PCIe 3.0 | 0 |
| PCIe 2.0 | 1x PCIe x16;3x PCIe x1 |
| Mainbord Strom | 24pin |
| CPU Strom | 8+4pin |
| SATA 3 | 4 |
| M.2 | 4 |
| M.2 Länge max. | 110mm |
| M.2 Konnektor | M |
| USB-Header USB 2.0 | 2 |
| USB-Header USB 3.0 | 2 |
| USB-Header USB C | 0 |
| Lüfter 4-polig PWM | 4 |
| Sound | |
| Sound-Chip | 7.1 Kanäle, Realtek ALC1220-VB |
| Sonstiges | |
| LAN | Realtek RTL8125 |
| Multi-GPU Modus | Nicht unterstützt |
| RAID SATA | 0, 1, 5, 10 |
| Beleuchtungsfarbe | RGB LED |
| Farbe | schwarz |
| Gewicht (g) | 2,64 kg |
| Breite (cm) | 30.40 |
| Tiefe (cm) | 24.30 |
| Graphismes internes | Oui |
| verfügbare Slots | 6 |
