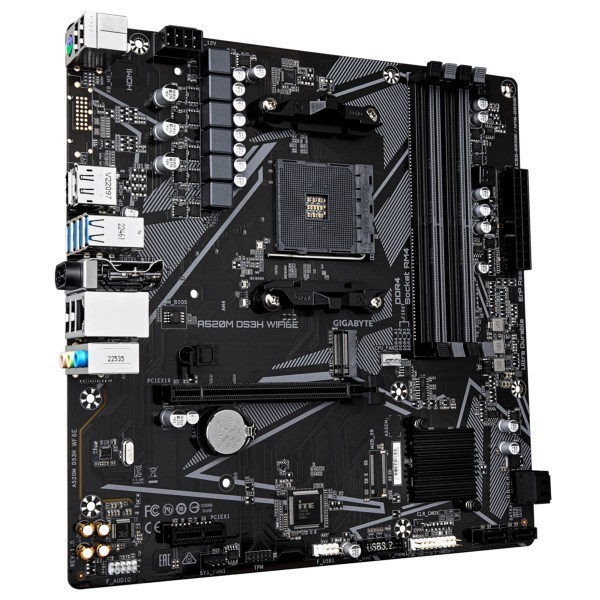

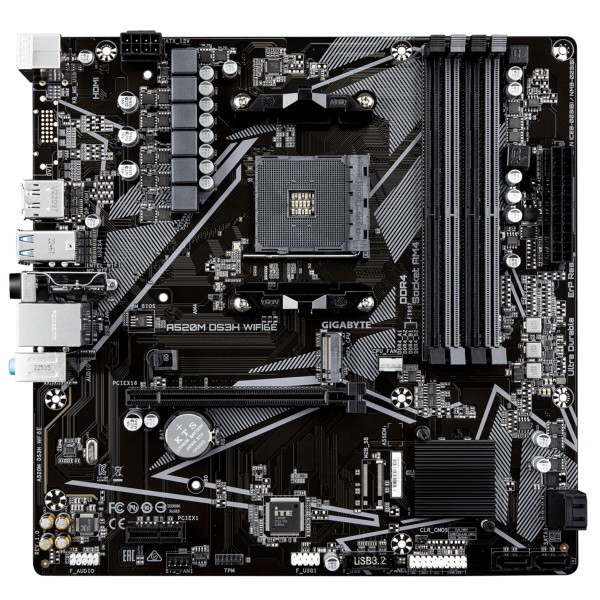

Gigabyte GA-A520M-DS3H WF6E (AM4) (D)
- Réf. d'article : 101241
- Entrée en stock: 19.02.2027
- Numéro du fabricant: A520M DS3H WF6E
- EAN: 4719331880743
- Socket: Socket AM4
- Internal memory max.: 128 GB
- Chipset: AMD A520
- Form factor: micro ATX
| Eigenschaften | |
| unterstützte Prozessormodelle | AMD Ryzen 3000 Series, AMD Ryzen 5000 Series, AMD Ryzen 4000 Series |
| Douille | Douille AM4 |
| Chipset | AMD A520 |
| BIOS | 128 Mbit |
| Format | Micro ATX |
| geeignet für freien Multiplikator | ja |
| RAM | |
| Speicher max. | 128 GB |
| Espaces mémoire | 4 |
| Speicher je Speicherplatz | 32 GB |
| Type de mémoire | DDR4 SDRAM |
| RAM Takt | 2133,2400,2667,2933,3200,3600,4000,4400,4733,3400,3466,3733,3866,4133,4266,4600 MHz |
| Speicher Kanäle | Zweikanalig |
| Speichertyp | non-ECC |
| Controller in CPU | ja |

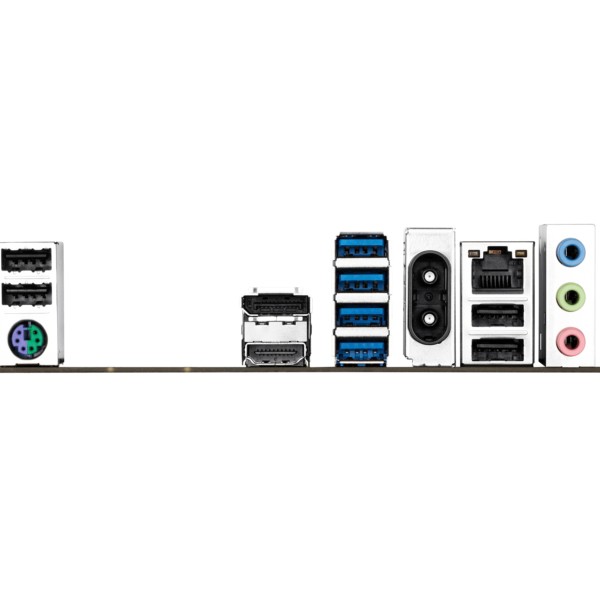

| Anschlüsse extern | |
| LAN (RJ45) | Gigabit Ethernet, Schnelles Ethernet |
| PS/2 (Tastatur/Maus) | 1 |
| USB 3.1 | 0 |
| USB 3.0 | 4 |
| USB 2.0 | 4 |
| VGA | 0 |
| DVI | 1 |
| HDMI | 1 |
| DisplayPort | 1 |
| Mikrofon | 1 |
| Line-Out 3,5 mm Klinke | 2 |
| Anschlüsse intern | |
| PCIe 4.0 | 1 |
| PCIe 3.0 | 1 |
| Mainbord Strom | 24pin |
| CPU Strom | 8pin |
| SATA 3 | 4 |
| M.2 | 1 |
| M.2 Länge max. | 110mm |
| M.2 Konnektor | M |
| USB-Header USB 2.0 | 1 |
| USB-Header USB 3.0 | 1 |
| USB-Header USB C | 0 |
| Lüfter 4-polig PWM | 1 |
| Sound | |
| Sound-Chip | Realtek ALC897 |
| Sonstiges | |
| LAN | Realtek RTL8111H |
| Multi-GPU | ja |
| Multi-GPU Modus | Nicht unterstützt |
| RAID SATA | 0, 1, 10 |
| Beleuchtungsfarbe | RGB |
| Farbe | schwarz |
| Gewicht (g) | 880 g |
| Breite (cm) | 24.40 |
| Tiefe (cm) | 24.40 |
| Graphismes internes | Oui |
| verfügbare Slots | 3 |
